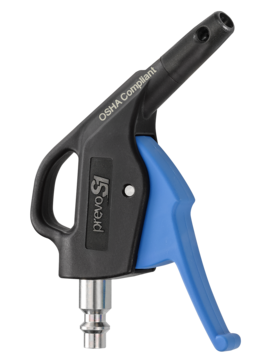

PREVOS1 blow gun with OSHA polyamide composite nozzle
Net weight (kg)
0,079
Nozzle
Venturi
Flow rate
220.00 l/min
Force of blow-molding
260.00 G
Material
Polyamide
Level sound
87.00 DBA
Dynamic pressure
1.00 BAR
Max. output pressure
12.00 bar
Min. temperature
-15.00 °C
Profile
ISO 6150B
Description
Reference
Net weight (kg)
Nozzle
Flow rate
Force of blow-molding
Material
Level sound
Dynamic pressure
Max. output pressure
Min. temperature
Profile
IBG 06OSH

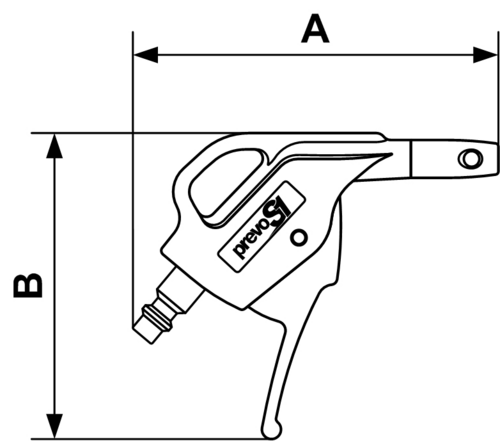

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
IBG 06OSH
116
97
Dimensions
| Reference | A mm | B mm |
|---|---|---|
| IBG 06OSH | 116 | 97 |
