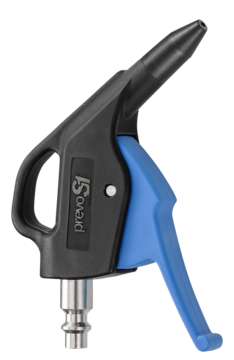

PREVOS1 blow gun with composite nozzle
Net weight (kg)
0,08
Nozzle
Straight
Flow rate
230.00 l/min
Force of blow-molding
286.00 G
Material
Polyamide
Level sound
85.00 DBA
Dynamic pressure
2.50 BAR
Max. output pressure
12.00 bar
Min. temperature
-15.00 °C
Profile
ISO 6150B
Description
Reference
Net weight (kg)
Nozzle
Flow rate
Force of blow-molding
Material
Level sound
Dynamic pressure
Max. output pressure
Min. temperature
Profile
IBG 06PRE

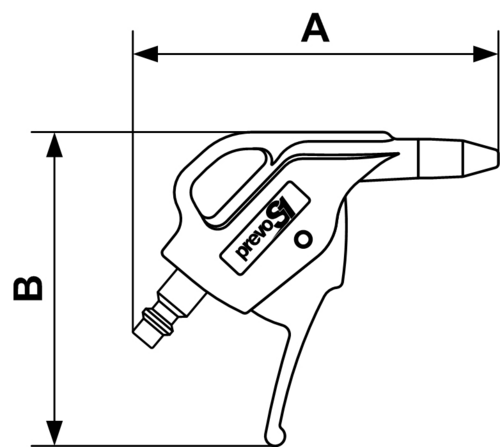

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
IBG 06PRE
113
97
Dimensions
| Reference | A mm | B mm |
|---|---|---|
| IBG 06PRE | 113 | 97 |
