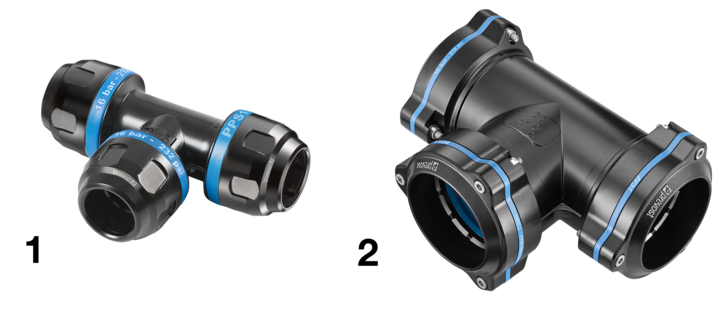

PPS1 TE - Aluminium equal female tee fitting for pipe
Net weight (kg)
5,5
Material
Aluminium
Max. output pressure
16.00 bar
Temperature
-20.00°C to 80.00°C
For pipe OD
100 mm mm
Numéro d'image
2.
Description
Reference
Net weight (kg)
Material
Max. output pressure
Temperature
For pipe OD
Numéro d'image
PPS1 TE100
PPS1 TE16
PPS1 TE20
PPS1 TE25
PPS1 TE32
PPS1 TE40
PPS1 TE50
PPS1 TE63
PPS1 TE80
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
PPS1 TE100
153.5
308.5
175
PPS1 TE16
32
90
62
PPS1 TE20
38
108
73
PPS1 TE25
46
131
89
PPS1 TE32
57
155
106
PPS1 TE40
68
183
135
PPS1 TE50
84
219
151
PPS1 TE63
100
261
180
PPS1 TE80
121
315
218
Description
Dimensions
| Reference | A mm | B mm | C mm |
|---|---|---|---|
| PPS1 TE100 | 153.5 | 308.5 | 175 |
| PPS1 TE16 | 32 | 90 | 62 |
| PPS1 TE20 | 38 | 108 | 73 |
| PPS1 TE25 | 46 | 131 | 89 |
| PPS1 TE32 | 57 | 155 | 106 |
| PPS1 TE40 | 68 | 183 | 135 |
| PPS1 TE50 | 84 | 219 | 151 |
| PPS1 TE63 | 100 | 261 | 180 |
| PPS1 TE80 | 121 | 315 | 218 |
