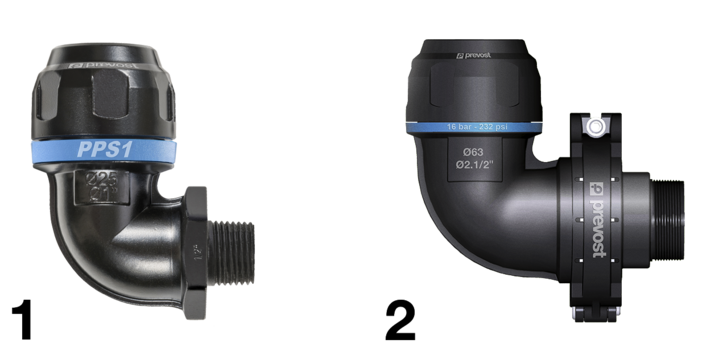

PPS1 9CM - Coude aluminium 90° fileté mâle conique pour tubes
Male thread
R 1 1/2
Max. output pressure
16.00 bar
Temperature
-20.00°C to 80.00°C
For pipe OD
50 mm mm
Numéro d'image
2.
Description
Reference
Male thread
Max. output pressure
Temperature
For pipe OD
Numéro d'image
Net weight (kg)
Material
PPS1 9CM5049
PPS1 9CM1612
PPS1 9CM6360
PPS1 9CM1617
PPS1 9CM2012
PPS1 9CM2512
PPS1 9CM2527
PPS1 9CM3234
PPS1 9CM4042
PPS1 9CM4049

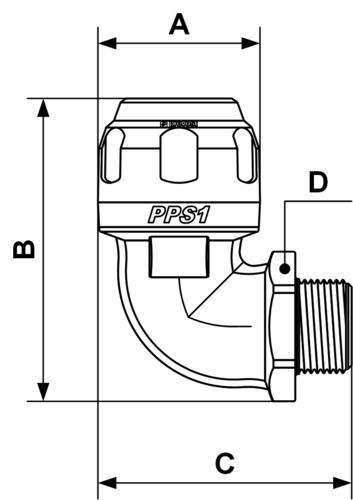

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
PPS1 9CM5049
32
60
55
26
PPS1 9CM1612
32
60
55
26
PPS1 9CM6360
PPS1 9CM1617
32
60
50
26
PPS1 9CM2012
38
72
61
32
PPS1 9CM2512
46
87
72
38
PPS1 9CM2527
46
87
71
38
PPS1 9CM3234
57
103
88
46
PPS1 9CM4042
68
123
106
57
PPS1 9CM4049
68
123
106
57
Description
Dimensions
| Reference | A mm | B mm | C mm | D mm |
|---|---|---|---|---|
| PPS1 9CM5049 | 32 | 60 | 55 | 26 |
| PPS1 9CM1612 | 32 | 60 | 55 | 26 |
| PPS1 9CM6360 | ||||
| PPS1 9CM1617 | 32 | 60 | 50 | 26 |
| PPS1 9CM2012 | 38 | 72 | 61 | 32 |
| PPS1 9CM2512 | 46 | 87 | 72 | 38 |
| PPS1 9CM2527 | 46 | 87 | 71 | 38 |
| PPS1 9CM3234 | 57 | 103 | 88 | 46 |
| PPS1 9CM4042 | 68 | 123 | 106 | 57 |
| PPS1 9CM4049 | 68 | 123 | 106 | 57 |
