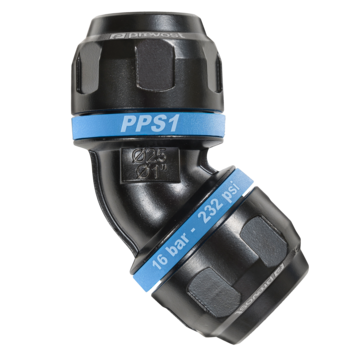

PPS1 4C - 45° aluminium equal female elbow fitting
Net weight (kg)
0,066
Material
Aluminium
Max. output pressure
16 bar
Temperature
-20°C to 80°C
For pipe OD
16 mm
Description
Reference
Net weight (kg)
Material
Max. output pressure
Temperature
For pipe OD
PPS1 4C16
PPS1 4C20
PPS1 4C25
PPS1 4C32
PPS1 4C40

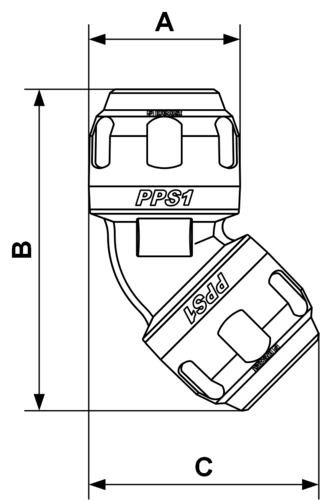

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
PPS1 4C16
32
70
50
PPS1 4C20
38
83
59
PPS1 4C25
46
98
70
PPS1 4C32
57
117
85
PPS1 4C40
68
140
102
Description
Dimensions
| Reference | A mm | B mm | C mm |
|---|---|---|---|
| PPS1 4C16 | 32 | 70 | 50 |
| PPS1 4C20 | 38 | 83 | 59 |
| PPS1 4C25 | 46 | 98 | 70 |
| PPS1 4C32 | 57 | 117 | 85 |
| PPS1 4C40 | 68 | 140 | 102 |
