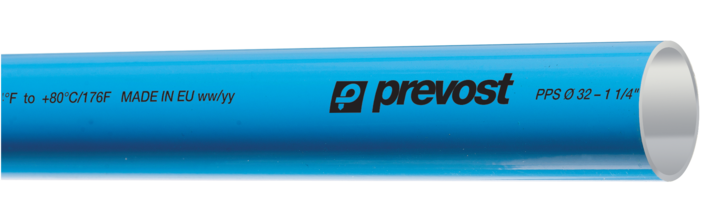

PPS - Aluminium blue pipe for compressed air

3310_PPS_TUB
3310_PPS_TUB
Net weight (kg)
12.7
Length
5.5 m
Material
Aluminium
Max. output pressure
16 bar
Temperature
-20°C to 80°C
For pipe OD
100 mm

Description

Reference
Length
Material
Max. output pressure
Temperature
For pipe OD
Net weight (kg)
PPS BTU10055
PPS BTU2055
PPS BTU2555
PPS BTU3255
PPS BTU4055
PPS BTU5055
PPS BTU6355
PPS BTU8055
PPS BTU16055
PPS BTU2530
PPS BTU3230
PPS BTU4030
PPS BTU5030
PPS BTU6330
PPS BTU8030
PPS BTU10030
PPS BTU16030
PPS BTU1630
PPS BTU2030

Dimensions

PPS_BTU_GTU_VTU
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
PPS BTU10055
2.8
PPS BTU2055
1.3
PPS BTU2555
1.4
PPS BTU3255
1.5
PPS BTU4055
1.8
PPS BTU5055
2
PPS BTU6355
2
PPS BTU8055
2.4
PPS BTU16055
4
PPS BTU2530
1.4
PPS BTU3230
1.4
PPS BTU4030
1.5
PPS BTU5030
2
PPS BTU6330
2
PPS BTU8030
2.4
PPS BTU10030
2.8
PPS BTU16030
4
PPS BTU1630
1.3
PPS BTU2030
1.3

Description

Reference Length Material Max. output pressure Temperature For pipe OD Net weight (kg) 3D
PPS BTU10055 5.5 m Aluminium 16 bar -20°C to 80°C 100 mm 12.7 3D
PPS BTU2055 5.5 m Aluminium 16 bar -20°C to 80°C 20 mm mm 1.133 3D
PPS BTU2555 5.5 m Aluminium 16 bar -20°C to 80°C 25 mm mm 1.54 3D
PPS BTU3255 5.5 m Aluminium 16 bar -20°C to 80°C 32 mm mm 2.134 3D
PPS BTU4055 5.5 m Aluminium 16 bar -20°C to 80°C 40 mm mm 3.262 3D
PPS BTU5055 5.5 m Aluminium 16 bar -20°C to 80°C 50 mm mm 4.477 3D
PPS BTU6355 5.5 m Aluminium 16 bar -20°C to 80°C 63 mm mm 5.693 3D
PPS BTU8055 5.5 m Aluminium 16 bar -20°C to 80°C 80 mm mm 8.69 3D
PPS BTU16055 5.5 m Aluminium 16 bar -20°C to 80°C 160 mm mm 27.5 3D
PPS BTU2530 2.9 m Aluminium 16 bar -20°C to 80°C 25 mm mm
PPS BTU3230 2.9 m Aluminium 16 bar -20°C to 80°C 32 mm
PPS BTU4030 2.9 m Aluminium 16 bar -20°C to 80°C 40 mm
PPS BTU5030 2.9 m Aluminium 16 bar -20°C to 80°C 50 mm mm
PPS BTU6330 2.9 m Aluminium 16 bar -20°C to 80°C 63 mm
PPS BTU8030 2.9 m Aluminium 16 bar -20°C to 80°C 80 mm
PPS BTU10030 2.9 m Aluminium 16 bar -20°C to 80°C 100 mm
PPS BTU16030 2.9 m Aluminium 16 bar -20°C to 80°C 160 mm
PPS BTU1630 2.9 m Aluminium 16 bar -20°C to 80°C 16 mm
PPS BTU2030 2.9 m Aluminium 16 bar -20°C to 80°C 20 mm

Dimensions

Reference A mm
PPS BTU10055 2.8
PPS BTU2055 1.3
PPS BTU2555 1.4
PPS BTU3255 1.5
PPS BTU4055 1.8
PPS BTU5055 2
PPS BTU6355 2
PPS BTU8055 2.4
PPS BTU16055 4
PPS BTU2530 1.4
PPS BTU3230 1.4
PPS BTU4030 1.5
PPS BTU5030 2
PPS BTU6330 2
PPS BTU8030 2.4
PPS BTU10030 2.8
PPS BTU16030 4
PPS BTU1630 1.3
PPS BTU2030 1.3
PPS_BTU_GTU_VTU
