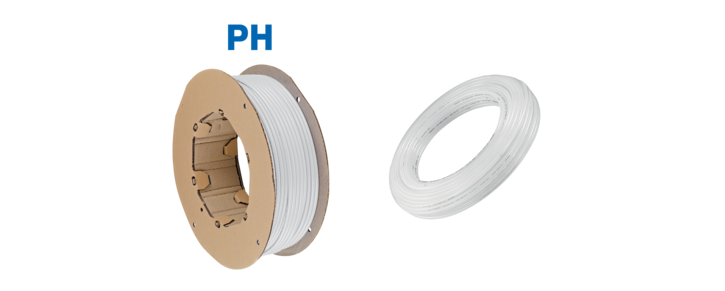

Polyurethane tube Ether base in 100 meter-reel (unit of sales = 1 reel)
Polyurethane tube Ether base in 100 meter-reel (unit of sales = 1 reel)
Max. output pressure
10 bar
Temperature
-20°C to 70°C
Plus de références
Reference
Net weight (kg)
Couleur
Ø ext. (mm)
Ø int. (mm)
Rayon de courbure
PHCR M2504100
PHCR M0406100
PHCR M5508100
PHCR M0710100
PHCR M0812100
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
PHCR M2504100
PHCR M0406100
PHCR M5508100
PHCR M0710100
PHCR M0812100
| Reference | Net weight (kg) | Couleur | Ø ext. (mm) | Ø int. (mm) | Rayon de courbure | 3D |
|---|---|---|---|---|---|---|
| PHCR M2504100 | 1,1 Kg | Clear | 4 mm | 2.5 mm | 12 mm | |
| PHCR M0406100 | 2 Kg | Clear | 6 mm | 4 mm | 20 mm | |
| PHCR M5508100 | 3,35 Kg | Clear | 8 mm | 5.5 mm | 25 mm | |
| PHCR M0710100 | 5,2 Kg | Clear | 10 mm | 7 mm | 35 mm | |
| PHCR M0812100 | 7,8 Kg | Clear | 12 mm | 8 mm | 40 mm |
