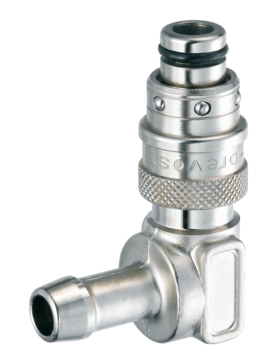

Plug 90° for hose
Net weight (kg)
0,112
Flow rate
30.00 l/min ,ΔP = 0.50 bar)
Material
Nickel-plated brass
Max. output pressure
10.00 bar
Security
Without safety
Temperature
-15.00°C to 90.00°C
ID passage
8 mm
Type of filling
Straight-through
For hose ID
8 mm
Description
Reference
Net weight (kg)
Flow rate
Material
Max. output pressure
Security
Temperature
ID passage
Type of filling
For hose ID
CPI 086808RE
CPI 086810RE
CPI 086812RE

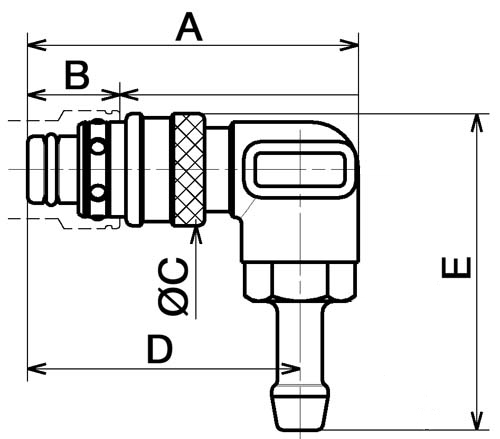

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
CPI 086808RE
59
16.4
20
48.5
56.5
CPI 086810RE
56
16.4
20
48.5
43
CPI 086812RE
59
16.4
20
48.5
48
Description
Dimensions
| Reference | A mm | B mm | C mm | D mm | E mm |
|---|---|---|---|---|---|
| CPI 086808RE | 59 | 16.4 | 20 | 48.5 | 56.5 |
| CPI 086810RE | 56 | 16.4 | 20 | 48.5 | 43 |
| CPI 086812RE | 59 | 16.4 | 20 | 48.5 | 48 |
