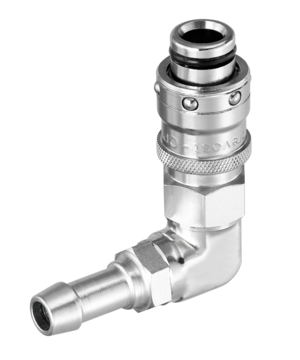

Plug 90° for hose
Flow rate
85 l/min, ΔP = 0.5 bar
Material
Nickel-plated brass
Max. output pressure
10 bar
Sécurité
Without safety
Temperature
-15°C to 90°C
ID passage
12 mm
Type of filling
Straight-through
Plus de références
Reference
Net weight (kg)
Pour tuyaux Ø int.
CPI 126813RE
CPI 126816RE

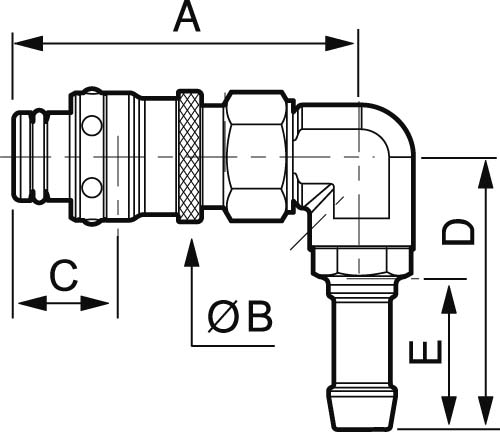

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
CPI 126813RE
74.5
28
22.4
60
33
CPI 126816RE
74.5
28
22.4
60
33
