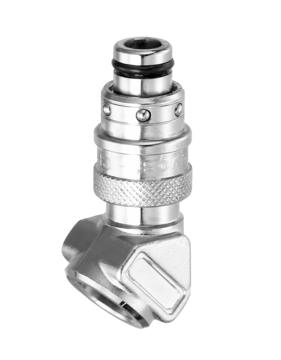

Plug 135° parallel female thread
Net weight (kg)
0,085
Flow rate
30.00 l/min ,ΔP = 0.50 bar)
Material
Nickel-plated brass
Max. output pressure
10.00 bar
Security
Without safety
Female thread
G1/4
Temperature
-15.00°C to 90.00°C
ID passage
8 mm
Type of filling
Straight-through
Description
Reference
Net weight (kg)
Flow rate
Material
Max. output pressure
Security
Female thread
Temperature
ID passage
Type of filling
CPI 086101RO
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
CPI 086101RO
43
16.4
20
14
20.8
Dimensions
| Reference | A mm | B mm | C mm | D mm | E mm |
|---|---|---|---|---|---|
| CPI 086101RO | 43 | 16.4 | 20 | 14 | 20.8 |
