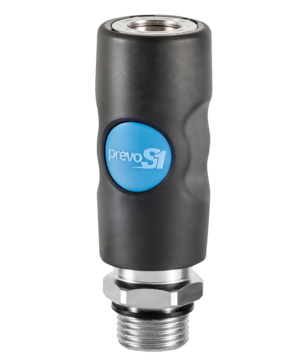

Parallel male thread coupler
Net weight (kg)
0,153
Flow rate
2028.00 l/min (P = 6.00 bar ,ΔP = 0.60 bar)
Disconnection
Button
Male thread
G1/4
Material
Composite
Max. output pressure
12.00 bar
Security
Safety
Temperature
-15.00°C to 70.00°C
ID passage
8 mm
Profile
ISO 6150B
Type of filling
Valved
Description
Reference
Net weight (kg)
Flow rate
Disconnection
Male thread
Material
Max. output pressure
Security
Temperature
ID passage
Profile
Type of filling
ISI 081151
ISI 081152
ISI 081153

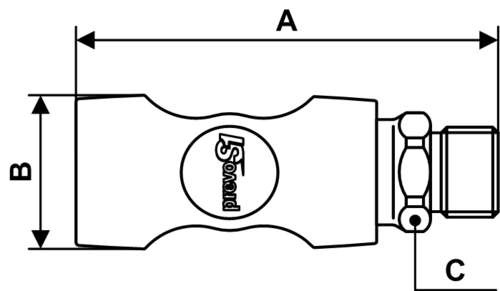

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
ISI 081151
90.4
33
23
ISI 081152
91.4
33
23
ISI 081153
93.4
33
26
Description
Dimensions
| Reference | A mm | B mm | C mm |
|---|---|---|---|
| ISI 081151 | 90.4 | 33 | 23 |
| ISI 081152 | 91.4 | 33 | 23 |
| ISI 081153 | 93.4 | 33 | 26 |
