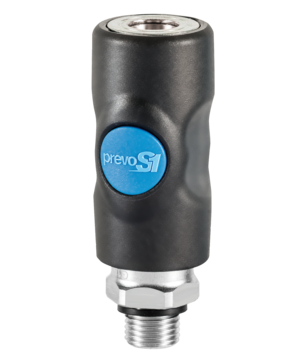

Parallel male thread coupler
Net weight (kg)
0,102
Flow rate
833.00 l/min (P = 6.00 bar ,ΔP = 0.60 bar)
Disconnection
Button
Male thread
G1/4
Material
Composite
Max. output pressure
12.00 bar
Security
Safety
Temperature
-15.00°C to 70.00°C
ID passage
6 mm
Profile
ISO 6150B
Type of filling
Valved
Description
Reference
Net weight (kg)
Flow rate
Disconnection
Male thread
Material
Max. output pressure
Security
Temperature
ID passage
Profile
Type of filling
ISI 061151
ISI 061152
ISI 061153

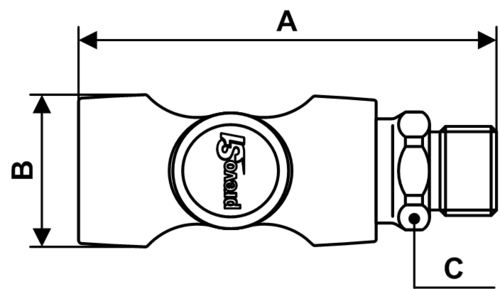

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
ISI 061151
76.3
30
20
ISI 061152
78.3
30
23
ISI 061153
82.3
30
26
Description
Dimensions
| Reference | A mm | B mm | C mm |
|---|---|---|---|
| ISI 061151 | 76.3 | 30 | 20 |
| ISI 061152 | 78.3 | 30 | 23 |
| ISI 061153 | 82.3 | 30 | 26 |
