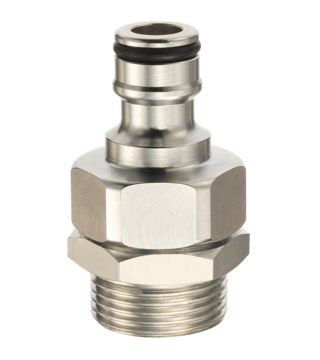

Parallel Male thread adaptor
Net weight (kg)
0,1206
Male thread
G1/2
Material
Chromed brass
Max. output pressure
10.00 bar
Security
Without safety
Temperature
-15.00°C to 60.00°C
ID passage
9 mm
Type of filling
Straight-through
Description
Reference
Net weight (kg)
Male thread
Material
Max. output pressure
Security
Temperature
ID passage
Type of filling
ELP 096153
ELP 096154

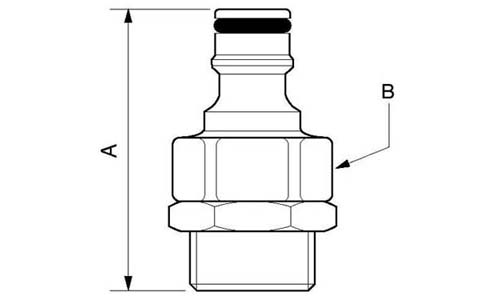

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
ELP 096153
57
30
ELP 096154
57
30
Description
Dimensions
| Reference | A mm | B mm |
|---|---|---|
| ELP 096153 | 57 | 30 |
| ELP 096154 | 57 | 30 |
