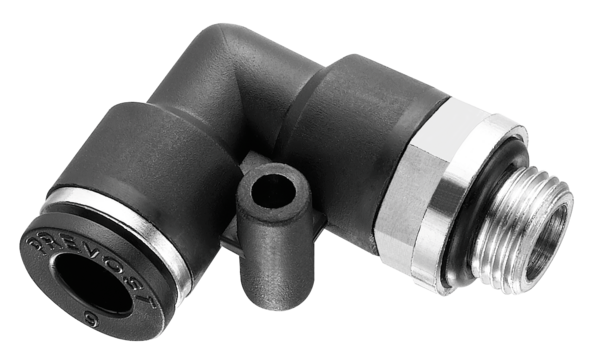

Parallel male 90° elbow - RPC MG
Net weight (kg)
0,034
Ø ext. (mm)
12.00
Male thread
G3/8
Material
Polymer
Max. output pressure
10.00 bar
Temperature
0.00°C to 60.00°C
For pipe OD
12 mm
Description
Reference
Net weight (kg)
Ø ext. (mm)
Male thread
Material
Max. output pressure
Temperature
For pipe OD
RPC MG1202
RPC MG1203
RPC MG1402
RPC MG1403
RPC MG1602
RPC MG1603
RPC MG0400
RPC MG0401
RPC MG04M5
RPC MG0500
RPC MG0501
RPC MG0502
RPC MG0503
RPC MG05M5
RPC MG0600
RPC MG0601
RPC MG0602
RPC MG0603
RPC MG06M5
RPC MG0800
RPC MG0801
RPC MG0802
RPC MG0803
RPC MG1000
RPC MG1001
RPC MG1002
RPC MG1003
RPC MG1201
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
RPC MG1202
34.5
27.8
19
28
19.8
RPC MG1203
36
27.8
21
28
19.8
RPC MG1402
38.2
29.8
22
31.7
22.7
RPC MG1403
37.2
29.8
24
29.2
22.7
RPC MG1602
41.5
30.8
24
34.9
23.8
RPC MG1603
39
30.8
24
31
23.8
RPC MG0400
24.1
17.5
12
18.6
10
RPC MG0401
24.7
17.5
14
18.7
10
RPC MG04M5
25
17.5
10
21
10
RPC MG0500
27
20.5
12
21.5
12.8
RPC MG0501
27.5
20.5
14
21.5
12.8
RPC MG0502
29
20.5
17
22.5
12.8
RPC MG0503
30
20.5
21
22
12.8
RPC MG05M5
27.5
20.5
12
23.5
12.8
RPC MG0600
27
20.5
12
21.5
12.8
RPC MG0601
27.5
20.5
14
21.5
12.8
RPC MG0602
29
20.5
17
22.5
12.8
RPC MG0603
30
20.5
21
22
12.8
RPC MG06M5
27.5
20.5
12
23.5
12.8
RPC MG0800
29.2
22.5
14
23.7
13.8
RPC MG0801
29.2
22.5
14
23.2
13.8
RPC MG0802
30.7
22.5
17
24.2
13.8
RPC MG0803
31.7
22.5
21
23.7
13.8
RPC MG1000
33.7
26.3
17
28.2
16.8
RPC MG1001
34.2
26.3
17
28.2
16.8
RPC MG1002
34.2
26.3
17
27.7
16.8
RPC MG1003
35.2
26.3
21
27.2
16.8
RPC MG1201
35
27.8
19
29
19.8
Description
| Reference | Net weight (kg) | Ø ext. (mm) | Male thread | Material | Max. output pressure | Temperature | For pipe OD | 3D |
|---|---|---|---|---|---|---|---|---|
| RPC MG1202 | 0,034 | 12.00 | G3/8 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 12 mm | |
| RPC MG1203 | 0,041 | 12.00 | G1/2 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 12 mm | |
| RPC MG1402 | 0,053 | 14.00 | G3/8 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 14 mm | |
| RPC MG1403 | 0,053 | 14.00 | G1/2 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 14 mm | |
| RPC MG1602 | 0,062 | 16.00 | G3/8 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 16 mm | |
| RPC MG1603 | 0,056 | 16.00 | G1/2 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 16 mm | |
| RPC MG0400 | 0,01 | 4.00 | G1/8 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 4 mm | |
| RPC MG0401 | 0,013 | 4.00 | G1/4 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 4 mm | |
| RPC MG04M5 | 0,009 | 4.00 | M5 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 4 mm | |
| RPC MG0500 | 0,013 | 5.00 | G1/8 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 5 mm | |
| RPC MG0501 | 0,015 | 5.00 | G1/4 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 5 mm | |
| RPC MG0502 | 0,02 | 5.00 | G3/8 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 5 mm | |
| RPC MG0503 | 0,026 | 5.00 | G1/2 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 5 mm | |
| RPC MG05M5 | 0,011 | 5.00 | M5 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 5 mm | |
| RPC MG0600 | 0,012 | 6.00 | G1/8 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 6 mm | |
| RPC MG0601 | 0,014 | 6.00 | G1/4 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 6 mm | |
| RPC MG0602 | 0,021 | 6.00 | G3/8 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 6 mm | |
| RPC MG0603 | 0,026 | 6.00 | G1/2 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 6 mm | |
| RPC MG06M5 | 0,012 | 6.00 | M5 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 6 mm | |
| RPC MG0800 | 0,016 | 8.00 | G1/8 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 8 mm | |
| RPC MG0801 | 0,016 | 8.00 | G1/4 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 8 mm | |
| RPC MG0802 | 0,022 | 8.00 | G3/8 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 8 mm | |
| RPC MG0803 | 0,03 | 8.00 | G1/2 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 8 mm | |
| RPC MG1000 | 0,026 | 10.00 | G1/8 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 10 mm | |
| RPC MG1001 | 0,027 | 10.00 | G1/4 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 10 mm | |
| RPC MG1002 | 0,028 | 10.00 | G3/8 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 10 mm | |
| RPC MG1003 | 0,037 | 10.00 | G1/2 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 10 mm | |
| RPC MG1201 | 0,035 | 12.00 | G1/4 | Polymer | 10.00 bar | 0.00°C to 60.00°C | 12 mm |
Dimensions
| Reference | A mm | B mm | C mm | D mm | E mm |
|---|---|---|---|---|---|
| RPC MG1202 | 34.5 | 27.8 | 19 | 28 | 19.8 |
| RPC MG1203 | 36 | 27.8 | 21 | 28 | 19.8 |
| RPC MG1402 | 38.2 | 29.8 | 22 | 31.7 | 22.7 |
| RPC MG1403 | 37.2 | 29.8 | 24 | 29.2 | 22.7 |
| RPC MG1602 | 41.5 | 30.8 | 24 | 34.9 | 23.8 |
| RPC MG1603 | 39 | 30.8 | 24 | 31 | 23.8 |
| RPC MG0400 | 24.1 | 17.5 | 12 | 18.6 | 10 |
| RPC MG0401 | 24.7 | 17.5 | 14 | 18.7 | 10 |
| RPC MG04M5 | 25 | 17.5 | 10 | 21 | 10 |
| RPC MG0500 | 27 | 20.5 | 12 | 21.5 | 12.8 |
| RPC MG0501 | 27.5 | 20.5 | 14 | 21.5 | 12.8 |
| RPC MG0502 | 29 | 20.5 | 17 | 22.5 | 12.8 |
| RPC MG0503 | 30 | 20.5 | 21 | 22 | 12.8 |
| RPC MG05M5 | 27.5 | 20.5 | 12 | 23.5 | 12.8 |
| RPC MG0600 | 27 | 20.5 | 12 | 21.5 | 12.8 |
| RPC MG0601 | 27.5 | 20.5 | 14 | 21.5 | 12.8 |
| RPC MG0602 | 29 | 20.5 | 17 | 22.5 | 12.8 |
| RPC MG0603 | 30 | 20.5 | 21 | 22 | 12.8 |
| RPC MG06M5 | 27.5 | 20.5 | 12 | 23.5 | 12.8 |
| RPC MG0800 | 29.2 | 22.5 | 14 | 23.7 | 13.8 |
| RPC MG0801 | 29.2 | 22.5 | 14 | 23.2 | 13.8 |
| RPC MG0802 | 30.7 | 22.5 | 17 | 24.2 | 13.8 |
| RPC MG0803 | 31.7 | 22.5 | 21 | 23.7 | 13.8 |
| RPC MG1000 | 33.7 | 26.3 | 17 | 28.2 | 16.8 |
| RPC MG1001 | 34.2 | 26.3 | 17 | 28.2 | 16.8 |
| RPC MG1002 | 34.2 | 26.3 | 17 | 27.7 | 16.8 |
| RPC MG1003 | 35.2 | 26.3 | 21 | 27.2 | 16.8 |
| RPC MG1201 | 35 | 27.8 | 19 | 29 | 19.8 |
