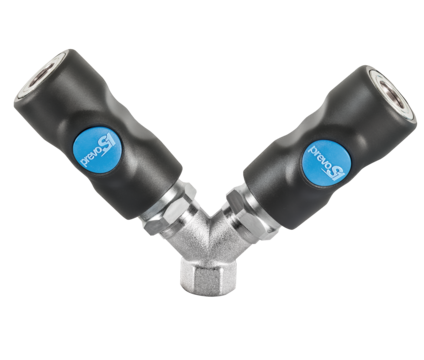

1847_ISI_068100

Parallel female thread twin coupler

Disconnection

Button

Material

Composite

Max. output pressure

12 bar

Sécurité

Safety

Temperature

-15°C to 70°C

ID passage

6 mm

Type of filling

Valved

Plus de références

Reference

Net weight (kg)

Flow rate

Female thread

Profile

ISI 068101

ISI 068102

ISI 068103

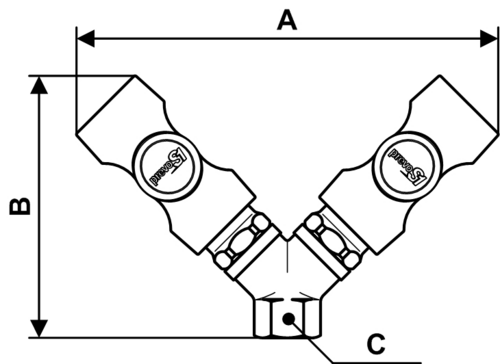

Dimensions

ISI_068100

Reference

A (mm)

B (mm)

C (mm)

D (mm)

E (mm)

ISI 068101

134

82

17

ISI 068102

140

87

20

ISI 068103

150

95

25

Reference	Net weight (kg)	Flow rate	Female thread	Profile	3D
ISI 068101	0.235 Kg	833 l/min (P = 6 bar, ΔP = 0.6 bar)	G1/4	ISO 6150B
ISI 068102	0,256 Kg	833 l/min (P = 6 bar, ΔP = 0.6 bar)	G3/8	ISO 6150B
ISI 068103	0.33 Kg	833 l/min (P = 6 bar, ΔP = 0.6 bar)	G1/2	ISO 6150B

Dimensions

Reference	A mm	B mm	C mm
ISI 068101	134	82	17
ISI 068102	140	87	20
ISI 068103	150	95	25

ISI_068100
