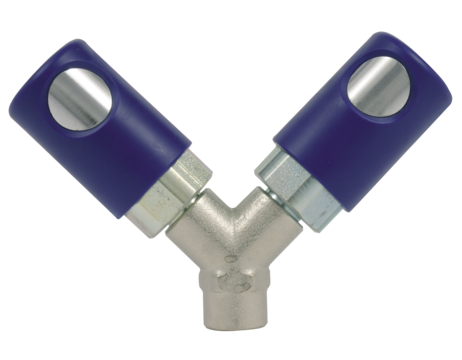

Parallel female thread twin coupler
Flow rate
800 l/min (P = 6 bar, ΔP = 0.6 bar)
Disconnection
Button
Material
Composite
Max. output pressure
12 bar
Temperature
-15°C to 70°C
ID passage
6 mm
Type of filling
Valved
Plus de références
Reference
Net weight (kg)
Female thread
Profile
IRC 068101
IRC 068102
IRC 068103

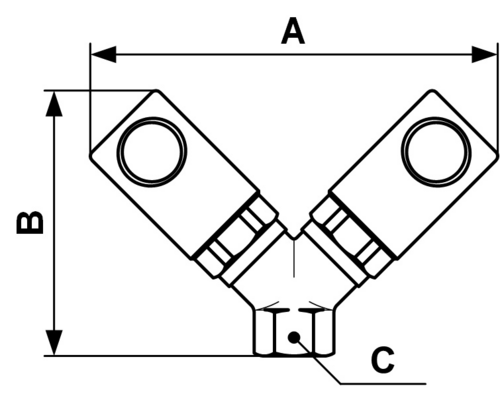

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
IRC 068101
116
77
23
IRC 068102
120
82
23
IRC 068103
128
93
23
