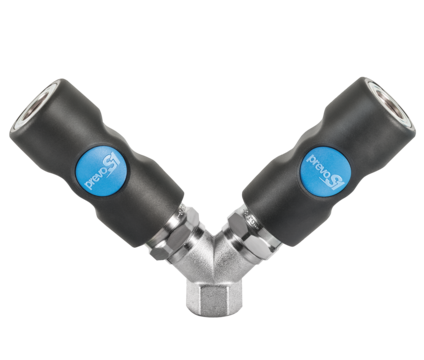

1854_ISI_088100

Parallel female thread twin coupler

Disconnection

Button

Material

Composite

Max. output pressure

12 bar

Sécurité

Safety

Temperature

-15°C to 70°C

ID passage

8 mm

Type of filling

Valved

Plus de références

Reference

Net weight (kg)

Flow rate

Female thread

Profile

ISI 088102

ISI 088103

ISI 088104

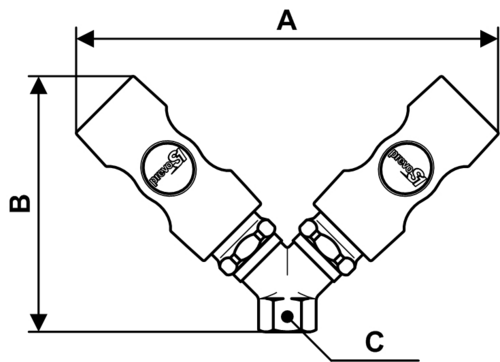

Dimensions

ISI_088100

Reference

A (mm)

B (mm)

C (mm)

D (mm)

E (mm)

ISI 088102

160

98

20

ISI 088103

167

103

25

ISI 088104

180

124

25

Reference	Net weight (kg)	Flow rate	Female thread	Profile	3D
ISI 088102	0,353 Kg	2028 l/min (P = 6 bar, ΔP = 0.6 bar)	G3/8	ISO 6150B
ISI 088103	0,406 Kg	2028 l/min (P = 6 bar, ΔP = 0.6 bar)	G1/2	ISO 6150B
ISI 088104	0,5 Kg	2028 l/min (P = 6 bar, ΔP = 0.6 bar)	G3/4	ISO 6150B

Dimensions

Reference	A mm	B mm	C mm
ISI 088102	160	98	20
ISI 088103	167	103	25
ISI 088104	180	124	25

ISI_088100
