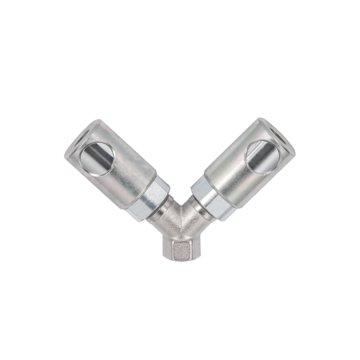

308_IRM_068100

Parallel female thread twin coupler

Disconnection

Button

Material

Steel

Max. output pressure

12 bar

Temperature

-15°C to 70°C

ID passage

6 mm

Type of filling

Valved

Plus de références

Reference

Net weight (kg)

Flow rate

Female thread

Profile

IRM 068101

IRM 068102

IRM 068103

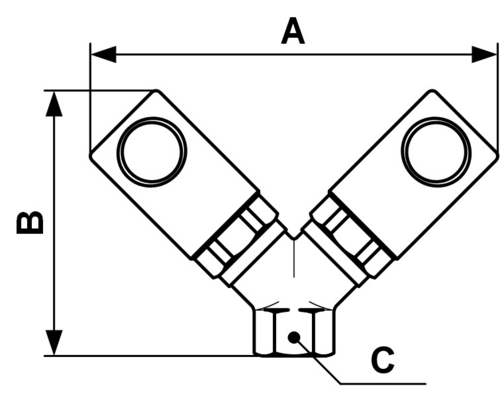

Dimensions

IRM_068100

Reference

A (mm)

B (mm)

C (mm)

D (mm)

E (mm)

IRM 068101

112

75

23

IRM 068102

117.5

82

23

IRM 068103

125.5

92

23

Reference	Net weight (kg)	Flow rate	Female thread	Profile	3D
IRM 068101	0,3286 Kg	750 l/min (P = 6 bar, ΔP = 0.6 bar)	G1/4	ISO 6150B
IRM 068102	0,38 Kg	750 l/min (P = 6 bar, ΔP = 0.6 bar)	G3/8	ISO 6150B
IRM 068103	0,4 Kg	750 l/min (P = 6 bar, ΔP = 0.6 bar)	G1/2	ISO 6150B

Dimensions

Reference	A mm	B mm	C mm
IRM 068101	112	75	23
IRM 068102	117.5	82	23
IRM 068103	125.5	92	23

IRM_068100
