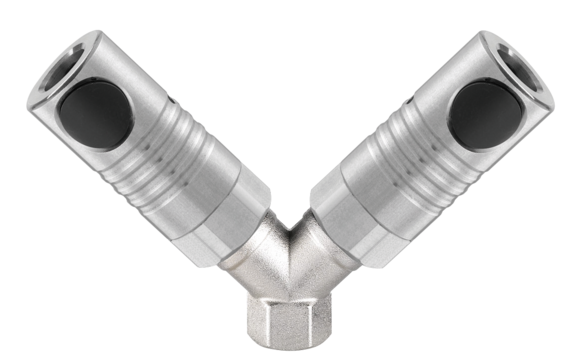

1874_CSM_088100

Parallel female thread twin coupler

Material

Stainless steel

Max. output pressure

16 bar

Sécurité

Safety

Temperature

-15°C to 70°C

ID passage

8 mm

Type of filling

Valved

Plus de références

Reference

Net weight (kg)

Flow rate

Female thread

Profile

CSM 088102

CSM 088103

CSM 088104

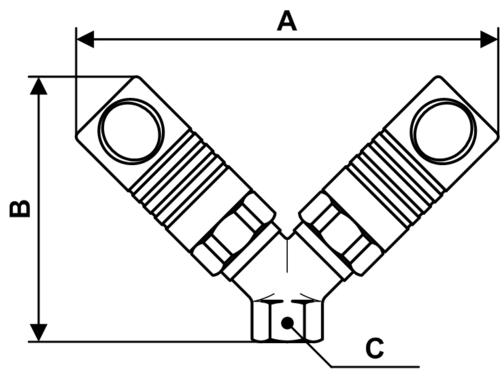

Dimensions

CSM_088100

Reference

A (mm)

B (mm)

C (mm)

D (mm)

E (mm)

CSM 088102

132

84

20

CSM 088103

140

90

25

CSM 088104

150

110

25

Reference	Net weight (kg)	Flow rate	Female thread	Profile	3D
CSM 088102	0,372 Kg	2120 l/min (P = 6 bar, ΔP = 0.6 bar)	G3/8	ISO 6150C
CSM 088103	0,434 Kg	2120 l/min (P = 6 bar, ΔP = 0.6 bar)	G1/2	ISO 6150C
CSM 088104	0,657 Kg	2120 l/min (P = 6 bar, ΔP = 0.6 bar)	G3/4	ISO 6150C

Dimensions

Reference	A mm	B mm	C mm
CSM 088102	132	84	20
CSM 088103	140	90	25
CSM 088104	150	110	25

CSM_088100
