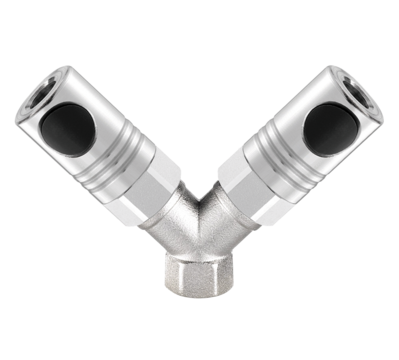

Parallel female thread twin coupler
Flow rate
833 l/min (P = 6 bar, ΔP = 0.6 bar)
Material
Stainless steel
Max. output pressure
16 bar
Sécurité
Safety
Temperature
-15°C to 70°C
ID passage
6 mm
Type of filling
Valved
Plus de références
Reference
Net weight (kg)
Female thread
Profile
CSM 068101
CSM 068102
CSM 068103

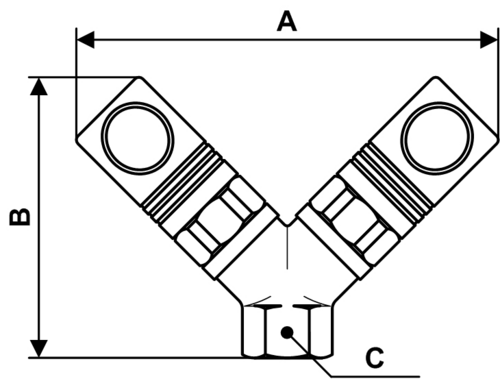

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
CSM 068101
101
66
17
CSM 068102
104
68
19
CSM 068103
112
75
25
