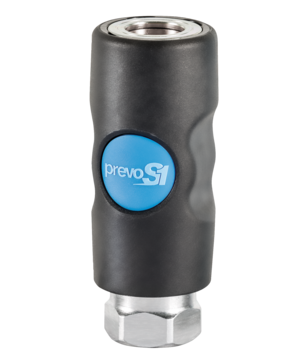

1850_ISI_081100

Parallel female thread coupler

Disconnection

Button

Material

Composite

Max. output pressure

12 bar

Sécurité

Safety

Temperature

-15°C to 70°C

ID passage

8 mm

Type of filling

Valved

Plus de références

Reference

Net weight (kg)

Flow rate

Female thread

Profile

ISI 081101

ISI 081102

ISI 081103

Dimensions

ISI 081100

Reference

A (mm)

B (mm)

C (mm)

D (mm)

E (mm)

ISI 081101

82.4

33

23

ISI 081102

82.4

33

23

ISI 081103

89.4

33

26

Reference	Net weight (kg)	Flow rate	Female thread	Profile	3D
ISI 081101	0,149 Kg	2028 l/min (P = 6 bar, ΔP = 0.6 bar)	G1/4	ISO 6150B
ISI 081102	0.145 Kg	2028 l/min (P = 6 bar, ΔP = 0.6 bar)	G3/8	ISO 6150B
ISI 081103	0.150 Kg	2028 l/min (P = 6 bar, ΔP = 0.6 bar)	G1/2	ISO 6150B

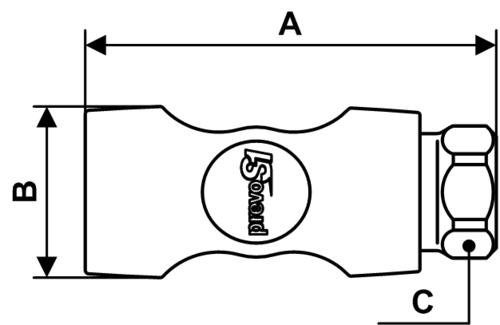

Dimensions

Reference	A mm	B mm	C mm
ISI 081101	82.4	33	23
ISI 081102	82.4	33	23
ISI 081103	89.4	33	26

ISI 081100
