3419_ISI_061100

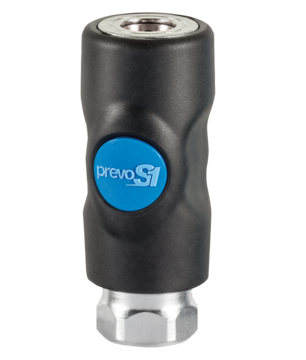

Parallel female thread coupler

Disconnection

Button

Material

Composite

Max. output pressure

12 bar

Sécurité

Safety

Temperature

-15°C to 70°C

ID passage

6 mm

Type of filling

Valved

Plus de références

Reference

Net weight (kg)

Flow rate

Female thread

Profile

ISI 061101

ISI 061102

ISI 061103

Dimensions

ISI 061100

Reference

A (mm)

B (mm)

C (mm)

D (mm)

E (mm)

ISI 061101

68.6

30

20

ISI 061102

74

30

20

ISI 061103

80.1

30

26

Reference	Net weight (kg)	Flow rate	Female thread	Profile	3D
ISI 061101	0,097 Kg	833 l/min (P = 6 bar, ΔP = 0.6 bar)	G1/4	ISO 6150B
ISI 061102	0.096 Kg	833 l/min (P = 6 bar, ΔP = 0.6 bar)	G3/8	ISO 6150B
ISI 061103	0,116 Kg	833 l/min (P = 6 bar, ΔP = 0.6 bar)	G1/2	ISO 6150B

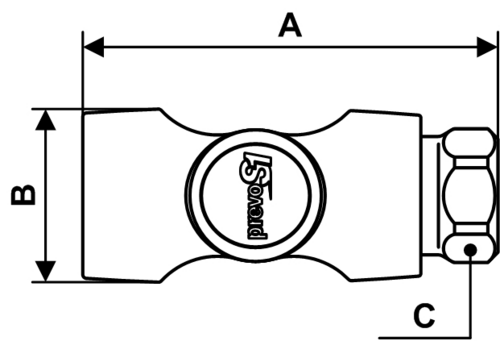

Dimensions

Reference	A mm	B mm	C mm
ISI 061101	68.6	30	20
ISI 061102	74	30	20
ISI 061103	80.1	30	26

ISI 061100
