1966_BSI_061100

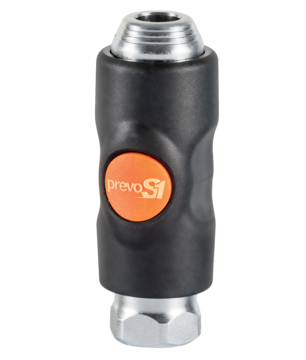

Parallel female thread coupler

Material

Composite

Max. output pressure

12 bar

Sécurité

Safety

Temperature

-15°C to 70°C

ID passage

6 mm

Type of filling

Valved

Plus de références

Reference

Net weight (kg)

Flow rate

Female thread

Profile

BSI 061101

BSI 061102

BSI 061103

Dimensions

BSI 061100

Reference

A (mm)

B (mm)

C (mm)

D (mm)

E (mm)

BSI 061101

76.2

30

20

BSI 061102

81.6

30

20

BSI 061103

87.7

30

26

Reference	Net weight (kg)	Flow rate	Female thread	Profile	3D
BSI 061101	0.110 Kg	750 l/min (P = 6 bar, ΔP = 0.6 bar)	G1/4	BRITISH
BSI 061102	0.108 Kg	750 l/min (P = 6 bar, ΔP = 0.6 bar)	G3/8	BRITISH
BSI 061103	0.129 Kg	750 l/min (P = 6 bar, ΔP = 0.6 bar)	G1/2	BRITISH

Dimensions

Reference	A mm	B mm	C mm
BSI 061101	76.2	30	20
BSI 061102	81.6	30	20
BSI 061103	87.7	30	26

BSI 061100
