2092_ASI_061100

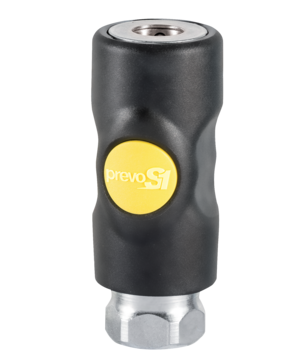

Parallel female thread coupler

Disconnection

Button

Material

Composite

Output pressure

2 to 12bar

Sécurité

Safety

Temperature

-15°C to 70°C

ID passage

6 mm

Type of filling

Valved

Plus de références

Reference

Net weight (kg)

Flow rate

Female thread

Profile

ASI 061101

ASI 061102

ASI 061103

Dimensions

ASI 061100

Reference

A (mm)

B (mm)

C (mm)

D (mm)

E (mm)

ASI 061101

68.6

30

20

ASI 061102

74

30

20

ASI 061103

80.1

30

26

Reference	Net weight (kg)	Flow rate	Female thread	Profile	3D
ASI 061101	0.098 Kg	800 l/min (P = 6 bar, ΔP = 0.6 bar)	G1/4	ARO 210
ASI 061102	0.096 Kg	800 l/min (P = 6 bar, ΔP = 0.6 bar)	G3/8	ARO 210
ASI 061103	0,117 Kg	800 l/min (P = 6 bar, ΔP = 0.6 bar)	G1/2	ARO 210

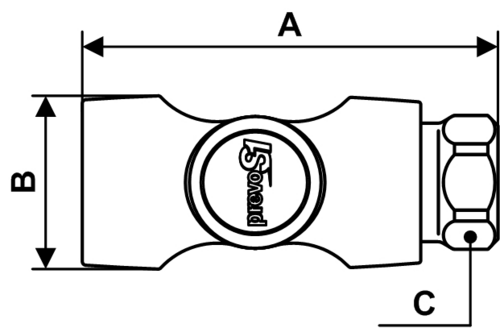

Dimensions

Reference	A mm	B mm	C mm
ASI 061101	68.6	30	20
ASI 061102	74	30	20
ASI 061103	80.1	30	26

ASI 061100
