Parallel female thread coupler

BSPP female thread
G 1/4
Profile
British
Technology
"One push" safety system (avoids hose whip)
Operating pressure
2 to 12 bar
Flow rate at 6 bar
750 l/min (ΔP : 0,6 bar)
ID Passage
6 mm
Temperature
-15°C to +70°C
Construction
Composite body
Highlight
Anti-static Non scratch

Description

Reference
BSPP female thread
BSI 061101
BSI 061102
BSI 061103

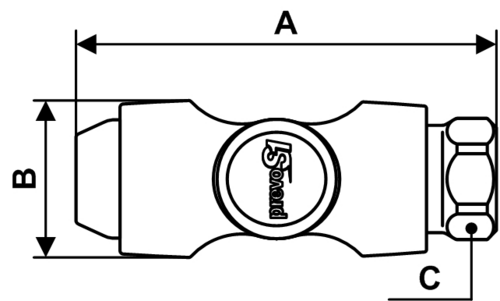

Dimensions

1966_BSI 061100.jpg
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
BSI 061101
76.2
30
20
BSI 061102
81.6
30
20
BSI 061103
87.7
30
26

Description

Reference BSPP female thread 3D
BSI 061101 G 1/4 3D
BSI 061102 G 3/8 3D
BSI 061103 G 1/2 3D

Dimensions

Reference A mm B mm C mm
BSI 061101 76.2 30 20
BSI 061102 81.6 30 20
BSI 061103 87.7 30 26
1966_BSI 061100.jpg
