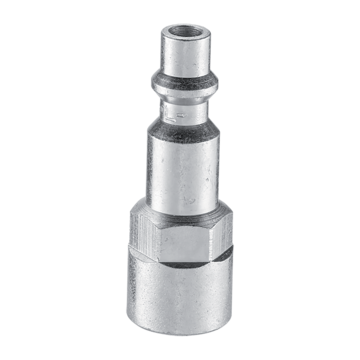

Parallel female thread adaptor

Net weight (kg)

0,022

Material

Steel

Security

Safety

Female thread

G1/4

ID passage

6 mm

Profile

ISO 6150B

Type of filling

Straight-through

Description

Reference

Net weight (kg)

Material

Security

Female thread

ID passage

Profile

Type of filling

IRP 066101

IRP 066101AE

IRP 066102

IRP 066301

IRP 066310

IRP 066314

IRP 066315

Dimensions

Reference

A (mm)

B (mm)

C (mm)

D (mm)

E (mm)

IRP 066101

40.5

IRP 066101AE

IRP 066102

IRP 066301

IRP 066310

IRP 066314

IRP 066315

Description

Reference	Net weight (kg)	Material	Security	Female thread	ID passage	Profile	Type of filling
IRP 066101	0,022	Steel	Safety	G1/4	6 mm	ISO 6150B	Straight-through
IRP 066101AE	0,036	Steel	Safety	G1/4	6 mm	ISO 6150B	Straight-through
IRP 066102	0,042	Steel	Safety	G3/8	6 mm	ISO 6150B	Straight-through
IRP 066301	0,034	Steel	Safety	NPSM1/4	6 mm	ISO 6150B	Straight-through
IRP 066310	0,018	Steel	Safety	MICHELIN	6 mm	ISO 6150B	Straight-through
IRP 066314	0,034	Steel	Safety	M14X1,25	6 mm	ISO 6150B	Straight-through
IRP 066315	0,034	Steel	Safety	DEVIL	6 mm	ISO 6150B	Straight-through

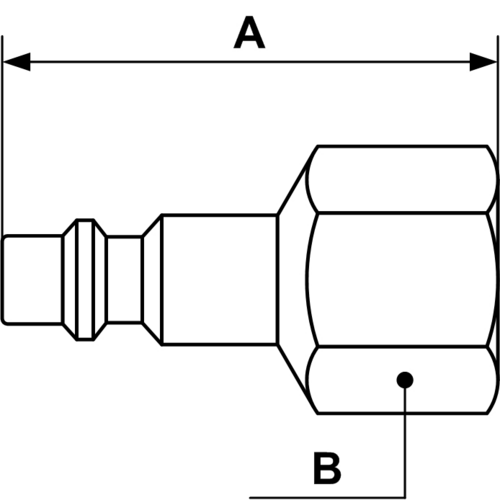

Dimensions

Reference	A mm	B mm
IRP 066101	40.5	15
IRP 066101AE	43	14
IRP 066102	45	21
IRP 066301	41	17
IRP 066310	34	14
IRP 066314	43	14
IRP 066315	44	17
