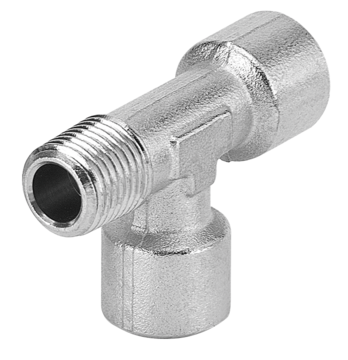

Parallel female tee piece with tapered male offset leg - A13
Material
Brass
Max. output pressure
15 bar
Plus de références
Reference
Net weight (kg)
Male thread
Female thread
A13 1818
A13 1414
A13 3838
A13 1212
A13 3434
A13 0101
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
A13 1818
37
21
10
16.5
13.5
A13 1414
50.5
26
13
24.5
17
A13 3838
56
28.5
15
26
20.5
A13 1212
66
34.5
20
30
25.5
A13 3434
69.5
37
25
33
32
A13 0101
84
45
30
39
39
| Reference | Net weight (kg) | Male thread | Female thread | 3D |
|---|---|---|---|---|
| A13 1818 | 0,026 Kg | R1/8 | G1/8 | |
| A13 1414 | 0,051 Kg | R1/4 | G1/4 | |
| A13 3838 | 0,075 Kg | R3/8 | G3/8 | |
| A13 1212 | 0,126 Kg | R1/2 | G1/2 | |
| A13 3434 | 0,177 Kg | R3/4 | G3/4 | |
| A13 0101 | 0,293 Kg | R1 | G1 |
Dimensions
| Reference | A mm | B mm | C mm | D mm | E mm |
|---|---|---|---|---|---|
| A13 1818 | 37 | 21 | 10 | 16.5 | 13.5 |
| A13 1414 | 50.5 | 26 | 13 | 24.5 | 17 |
| A13 3838 | 56 | 28.5 | 15 | 26 | 20.5 |
| A13 1212 | 66 | 34.5 | 20 | 30 | 25.5 |
| A13 3434 | 69.5 | 37 | 25 | 33 | 32 |
| A13 0101 | 84 | 45 | 30 | 39 | 39 |
