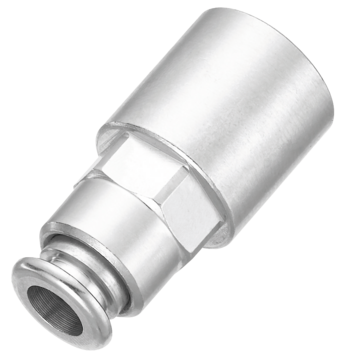

Parallel female straight coupler - RMD FG
Material
Nickel-plated brass
Max. output pressure
15 bar
Temperature
-20°C to 80°C
Plus de références
Reference
Net weight (kg)
Ø ext. (mm)
Female thread
Pour tube Ø ext.
RMD FG0400
RMD FG0600
RMD FG0601
RMD FG0800
RMD FG0801
RMD FG1001
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
RMD FG0400
27
9.8
10
RMD FG0600
30
11.6
13
RMD FG0601
32.5
11.6
13
RMD FG0800
30.5
13.5
14
RMD FG0801
32.5
13.5
14
RMD FG1001
35.5
15.6
17
| Reference | Net weight (kg) | Ø ext. (mm) | Female thread | Pour tube Ø ext. | 3D |
|---|---|---|---|---|---|
| RMD FG0400 | 0,015 Kg | 4 mm | G1/8 | 4 mm | |
| RMD FG0600 | 0,023 Kg | 6 mm | G1/8 | 6 mm | |
| RMD FG0601 | 0,028 Kg | 6 mm | G1/4 | 6 mm | |
| RMD FG0800 | 0,028 Kg | 8 mm | G1/8 | 8 mm | |
| RMD FG0801 | 0,026 Kg | 8 mm | G1/4 | 8 mm | |
| RMD FG1001 | 0,044 Kg | 10 mm | G1/4 | 10 mm |
Dimensions
| Reference | A mm | B mm | C mm |
|---|---|---|---|
| RMD FG0400 | 27 | 9.8 | 10 |
| RMD FG0600 | 30 | 11.6 | 13 |
| RMD FG0601 | 32.5 | 11.6 | 13 |
| RMD FG0800 | 30.5 | 13.5 | 14 |
| RMD FG0801 | 32.5 | 13.5 | 14 |
| RMD FG1001 | 35.5 | 15.6 | 17 |
