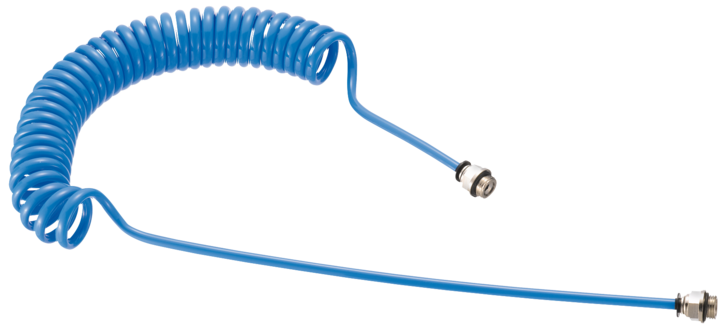

Mini polyurethane recoils with CONEX push-in fittings - RPD MG
Net weight (kg)
0,054
Color
Blue
Ø of coils
24.00 mm
Ø ext. (mm)
4.00
Ø int. (mm)
2.50
Male thread
G1/8
Length
2.00 m
Length Mini
0.19 M
Max. output pressure
8.00 bar
Temperature
-15.00°C to 70.00°C
Description
Reference
Net weight (kg)
Color
Ø of coils
Ø ext. (mm)
Ø int. (mm)
Male thread
Length
Length Mini
Max. output pressure
Temperature
PUS 22
PUS 24
PUS 42
PUS 44
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
PUS 22
PUS 24
PUS 42
PUS 44
Description
| Reference | Net weight (kg) | Color | Ø of coils | Ø ext. (mm) | Ø int. (mm) | Male thread | Length | Length Mini | Max. output pressure | Temperature | 3D |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PUS 22 | 0,054 | Blue | 24.00 mm | 4.00 | 2.50 | G1/8 | 2.00 m | 0.19 M | 8.00 bar | -15.00°C to 70.00°C | |
| PUS 24 | 0,082 | Blue | 24.00 mm | 4.00 | 2.50 | G1/8 | 4.00 m | 0.39 M | 8.00 bar | -15.00°C to 70.00°C | |
| PUS 42 | 0,103 | Blue | 32.00 mm | 6.00 | 4.00 | G1/4 | 2.00 m | 0.23 M | 8.00 bar | -15.00°C to 70.00°C | |
| PUS 44 | 0,163 | Blue | 32.00 mm | 6.00 | 4.00 | G1/4 | 4.00 m | 0.48 M | 8.00 bar | -15.00°C to 70.00°C |
