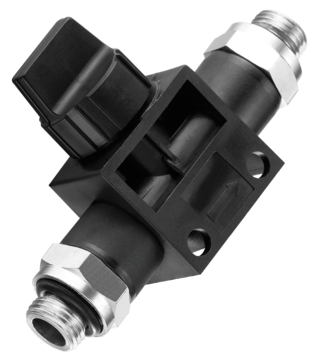

Micro valve - Parallel male thread - RPS DG
Material
Polymer
Max. output pressure
10 bar
Max. temperature
60 °C
Plus de références
Reference
Net weight (kg)
Male thread
RPS DG0000
RPS DG0100
RPS DG0101
RPS DG0201
RPS DG0202
RPS DG0302
RPS DG0303
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
RPS DG0000
65
40.3
14
32.5
32.5
RPS DG0100
66.5
40.3
14
34
32.5
RPS DG0101
68
40.3
14
34
34
RPS DG0201
81.5
44.5
17
42
39.5
RPS DG0202
84
44.5
17
42
42
RPS DG0302
86
44.5
21
44
42
RPS DG0303
88
44.5
21
44
44
| Reference | Net weight (kg) | Male thread | 3D |
|---|---|---|---|
| RPS DG0000 | 0,036 Kg | G1/8 | |
| RPS DG0100 | 0,036 Kg | G1/8; G1/4 | |
| RPS DG0101 | 0,036 Kg | G1/4 | |
| RPS DG0201 | 0,041 Kg | G1/4; G3/8 | |
| RPS DG0202 | 0,049 Kg | G3/8 | |
| RPS DG0302 | 0,056 Kg | G1/2; G3/8 | |
| RPS DG0303 | 0,062 Kg | G1/2 |
Dimensions
| Reference | A mm | B mm | C mm | D mm | E mm |
|---|---|---|---|---|---|
| RPS DG0000 | 65 | 40.3 | 14 | 32.5 | 32.5 |
| RPS DG0100 | 66.5 | 40.3 | 14 | 34 | 32.5 |
| RPS DG0101 | 68 | 40.3 | 14 | 34 | 34 |
| RPS DG0201 | 81.5 | 44.5 | 17 | 42 | 39.5 |
| RPS DG0202 | 84 | 44.5 | 17 | 42 | 42 |
| RPS DG0302 | 86 | 44.5 | 21 | 44 | 42 |
| RPS DG0303 | 88 | 44.5 | 21 | 44 | 44 |
