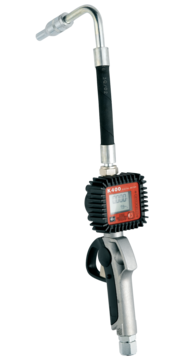

Metering oil distribution gun
Net weight (kg)
1,575
Flow rate
20.00 l/min
Male thread
G1/2
Outlet working pressure
12.00 to 28.00BAR
Max. output pressure
7.00 bar
Female thread
G1/2
Description
Reference
Net weight (kg)
Flow rate
Male thread
Outlet working pressure
Max. output pressure
Female thread
EPH VOL12

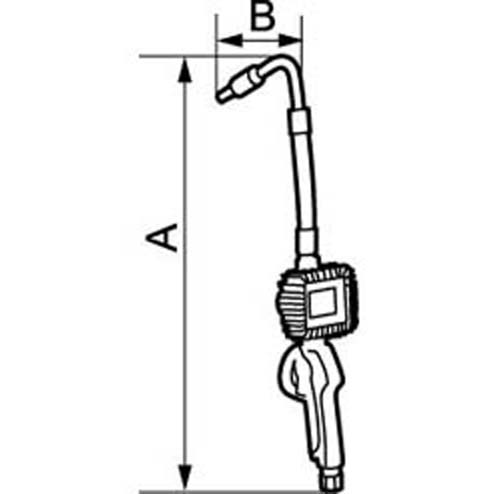

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
EPH VOL12
525
135
Description
| Reference | Net weight (kg) | Flow rate | Male thread | Outlet working pressure | Max. output pressure | Female thread | 3D |
|---|---|---|---|---|---|---|---|
| EPH VOL12 | 1,575 | 20.00 l/min | G1/2 | 12.00 to 28.00BAR | 7.00 bar | G1/2 |
Dimensions
| Reference | A mm | B mm |
|---|---|---|
| EPH VOL12 | 525 | 135 |
