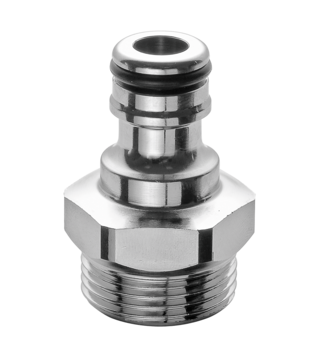

Male thread valved adaptor
Net weight (kg)
0,079
Male thread
G3/4
Material
Chromed brass
Max. output pressure
10.00 bar
Security
Without safety
Temperature
-15.00°C to 60.00°C
ID passage
9 mm
Type of filling
Valved
Description
Reference
Net weight (kg)
Male thread
Material
Max. output pressure
Security
Temperature
ID passage
Type of filling
ELP 097154

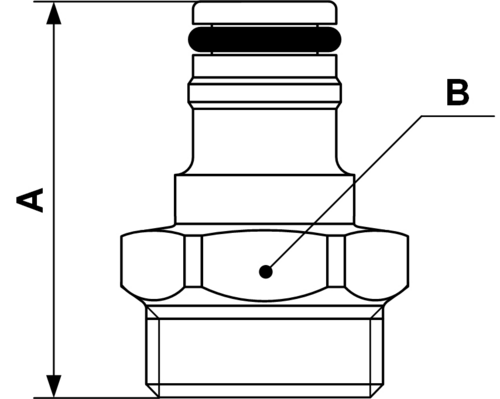

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
ELP 097154
45
29
