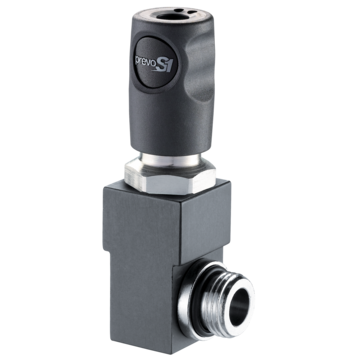

Male thread swivel coupler
Flow rate
833 l/min (P = 6 bar, ΔP = 0.6 bar)
Material
Composite; Aluminium
Max. output pressure
12 bar
Sécurité
Safety
Temperature
-15°C to 70°C
ID passage
6 mm
Type of filling
Valved
Plus de références
Reference
Net weight (kg)
Male thread
Profile
CSI 061153SE
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
CSI 061153SE
104
41
29
| Reference | Net weight (kg) | Male thread | Profile | 3D |
|---|---|---|---|---|
| CSI 061153SE | 0,225 Kg | G1/2 | ISO 6150C |
Dimensions
| Reference | A mm | B mm | C mm |
|---|---|---|---|
| CSI 061153SE | 104 | 41 | 29 |
