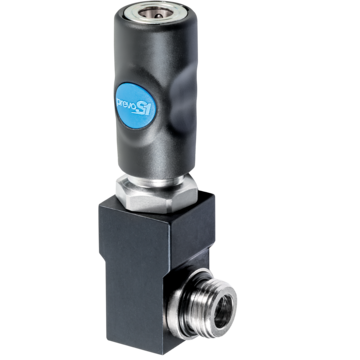

Male thread swivel coupler
Net weight (kg)
0,265
Flow rate
833.00 l/min (P = 6.00 bar ,ΔP = 0.60 bar)
Disconnection
Button
Male thread
G1/2
Material
Aluminium; Composite
Max. output pressure
12.00 bar
Security
Safety
Temperature
-15.00°C to 70.00°C
ID passage
6 mm
Profile
ISO 6150B
Type of filling
Valved
Description
Reference
Net weight (kg)
Flow rate
Disconnection
Male thread
Material
Max. output pressure
Security
Temperature
ID passage
Profile
Type of filling
ISI 061153SE

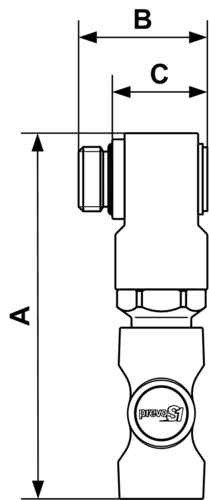

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
ISI 061153SE
119
42
31
Description
| Reference | Net weight (kg) | Flow rate | Disconnection | Male thread | Material | Max. output pressure | Security | Temperature | ID passage | Profile | Type of filling | 3D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ISI 061153SE | 0,265 | 833.00 l/min (P = 6.00 bar ,ΔP = 0.60 bar) | Button | G1/2 | Aluminium; Composite | 12.00 bar | Safety | -15.00°C to 70.00°C | 6 mm | ISO 6150B | Valved |
Dimensions
| Reference | A mm | B mm | C mm |
|---|---|---|---|
| ISI 061153SE | 119 | 42 | 31 |
