3646_ATU T2510101

Lubricator filter-regulator - 3 units

Flow rate

500 l/min (P = 6 bar, ΔP = 1.00 bar)

Filtration

25.00 μm

Max. output pressure

10 bar

Plus de références

Reference

Net weight (kg)

Outlet working pressure

Female thread

ATU T2510100

ATU T2510101

ATU T2510102

ATU T2510103

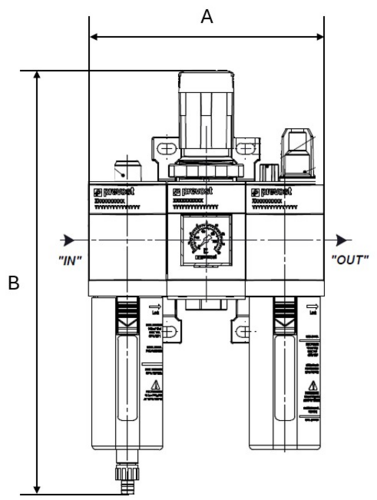

Dimensions

ATU T

Reference

A (mm)

B (mm)

C (mm)

D (mm)

E (mm)

ATU T2510100

97

302

ATU T2510101

97

302

ATU T2510102

97

302

ATU T2510103

97

302

Reference	Net weight (kg)	Outlet working pressure	Female thread	3D
ATU T2510100	0.977 Kg	0.5 to 10BAR	G1/8
ATU T2510101	0,977 Kg	0.5 to 10BAR	G1/4
ATU T2510102	2,446 Kg	0.5 to 10BAR	G3/8
ATU T2510103	2.446 Kg	0.5 to 10BAR	G1/2

Dimensions

Reference	A mm	B mm
ATU T2510100	97	302
ATU T2510101	97	302
ATU T2510102	97	302
ATU T2510103	97	302

ATU T
