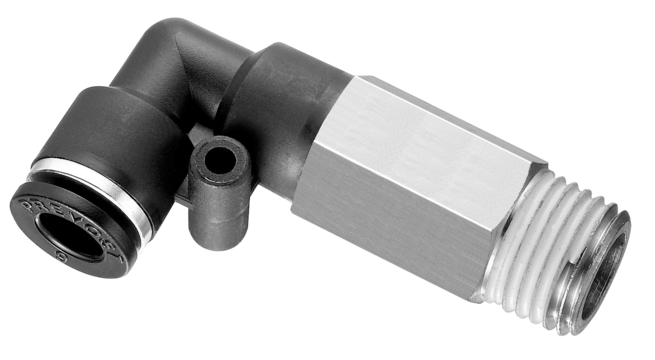

Long tapered male 90° elbow - RPC LR
Male thread
1/8" NPT
Description
Reference
Male thread
Net weight (kg)
Max. output pressure
Max. temperature
RPC LR1820
RPC LR2121
RPC LR2122
RPC LR2123
RPC LR3120
RPC LR3121
RPC LR3122
RPC LR3821
RPC LR3822
RPC LR3823
RPC LR4120
RPC LR4121
RPC LR4122
RPC LR5120
RPC LR5121
RPC LR5122
RPC LR5320
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
RPC LR1820
RPC LR2121
RPC LR2122
RPC LR2123
RPC LR3120
41.5
8
1
20.5
12.8
RPC LR3121
45.5
11
9
20.5
12.8
RPC LR3122
47
12
11
20.5
12.8
RPC LR3821
54.7
11
11
26.3
16.8
RPC LR3822
55.7
12
11
26.3
16.8
RPC LR3823
59.7
15
7
26.3
16.8
RPC LR4120
41.5
8
1
20.5
12.8
RPC LR4121
45.5
11
9
20.5
12.8
RPC LR4122
47
12
11
20.5
12.8
RPC LR5120
44.2
8
9
22.5
13.8
RPC LR5121
47.2
11
9
22.5
13.8
RPC LR5122
48.7
12
11
22.5
13.8
RPC LR5320
36
8
7
17.5
10
Description
| Reference | Male thread | Net weight (kg) | Max. output pressure | Max. temperature | 3D |
|---|---|---|---|---|---|
| RPC LR1820 | 1/8" NPT | ||||
| RPC LR2121 | 1/4" NPT | 0,078 | |||
| RPC LR2122 | 3/8" NPT | ||||
| RPC LR2123 | 1/2" NPT | ||||
| RPC LR3120 | 1/8" NPT | 10 bar | 60 °C | ||
| RPC LR3121 | 1/4" NPT | 10 bar | 60 °C | ||
| RPC LR3122 | 3/8" NPT | 10 bar | 60 °C | ||
| RPC LR3821 | 1/4" NPT | 10 bar | 60 °C | ||
| RPC LR3822 | 3/8" NPT | 10 bar | 60 °C | ||
| RPC LR3823 | 1/2" NPT | 10 bar | 60 °C | ||
| RPC LR4120 | 1/8" NPT | 0,025 | 10 bar | 60 °C | |
| RPC LR4121 | 1/4" NPT | 0,32 | 10 bar | 60 °C | |
| RPC LR4122 | 3/8" NPT | 0,042 | 10 bar | 60 °C | |
| RPC LR5120 | 1/8" NPT | 10 bar | 60 °C | ||
| RPC LR5121 | 1/4" NPT | 10 bar | 60 °C | ||
| RPC LR5122 | 3/8" NPT | 10 bar | 60 °C | ||
| RPC LR5320 | 1/8" NPT | 10 bar | 60 °C |
Dimensions
| Reference | A mm | B mm | C mm | D mm | E mm |
|---|---|---|---|---|---|
| RPC LR1820 | |||||
| RPC LR2121 | |||||
| RPC LR2122 | |||||
| RPC LR2123 | |||||
| RPC LR3120 | 41.5 | 8 | 1 | 20.5 | 12.8 |
| RPC LR3121 | 45.5 | 11 | 9 | 20.5 | 12.8 |
| RPC LR3122 | 47 | 12 | 11 | 20.5 | 12.8 |
| RPC LR3821 | 54.7 | 11 | 11 | 26.3 | 16.8 |
| RPC LR3822 | 55.7 | 12 | 11 | 26.3 | 16.8 |
| RPC LR3823 | 59.7 | 15 | 7 | 26.3 | 16.8 |
| RPC LR4120 | 41.5 | 8 | 1 | 20.5 | 12.8 |
| RPC LR4121 | 45.5 | 11 | 9 | 20.5 | 12.8 |
| RPC LR4122 | 47 | 12 | 11 | 20.5 | 12.8 |
| RPC LR5120 | 44.2 | 8 | 9 | 22.5 | 13.8 |
| RPC LR5121 | 47.2 | 11 | 9 | 22.5 | 13.8 |
| RPC LR5122 | 48.7 | 12 | 11 | 22.5 | 13.8 |
| RPC LR5320 | 36 | 8 | 7 | 17.5 | 10 |
