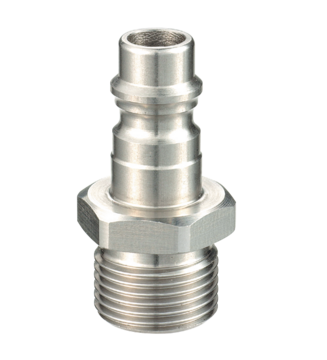

Long-profile parallel male thread adaptor
Net weight (kg)
0,025
Flow rate
2050.00 l/min (P = 6.00 bar ,ΔP = 1.00 bar)
Male thread
G1/4
Material
Chromed brass
Temperature
-20.00°C to 60.00°C
ID passage
7.2 mm
Profile
EURO_LONG
Type of filling
Straight-through
Description
Reference
Net weight (kg)
Flow rate
Male thread
Material
Temperature
ID passage
Profile
Type of filling
BAP 076151
BAP 076152

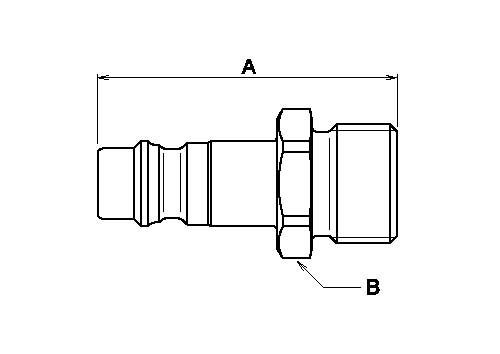

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
BAP 076151
41
17
BAP 076152
42
19
Description
| Reference | Net weight (kg) | Flow rate | Male thread | Material | Temperature | ID passage | Profile | Type of filling | 3D |
|---|---|---|---|---|---|---|---|---|---|
| BAP 076151 | 0,025 | 2050.00 l/min (P = 6.00 bar ,ΔP = 1.00 bar) | G1/4 | Chromed brass | -20.00°C to 60.00°C | 7.2 mm | EURO_LONG | Straight-through | |
| BAP 076152 | 0,031 | 2050.00 l/min (P = 6.00 bar ,ΔP = 1.00 bar) | G3/8 | Chromed brass | -20.00°C to 60.00°C | 7.2 mm | EURO_LONG | Straight-through |
Dimensions
| Reference | A mm | B mm |
|---|---|---|
| BAP 076151 | 41 | 17 |
| BAP 076152 | 42 | 19 |
