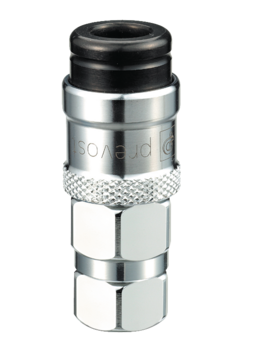

Long-profile parallel female thread coupler
Net weight (kg)
0,117
Flow rate
2050.00 l/min (P = 6.00 bar ,ΔP = 1.00 bar)
Material
Chromed brass
Max. output pressure
10.00 bar
Female thread
G1/4
Temperature
-20.00°C to 60.00°C
ID passage
7.2 mm
Profile
EURO_LONG
Type of filling
Valved
Description
Reference
Net weight (kg)
Flow rate
Material
Max. output pressure
Female thread
Temperature
ID passage
Profile
Type of filling
BAC 071101

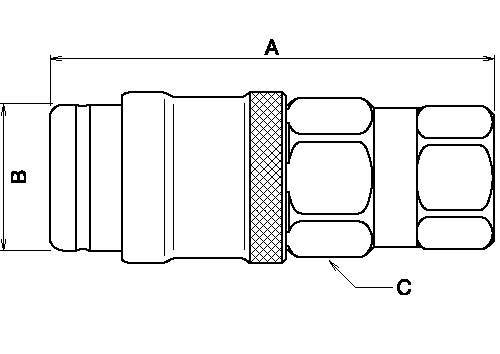

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
BAC 071101
65
21
20
Dimensions
| Reference | A mm | B mm | C mm |
|---|---|---|---|
| BAC 071101 | 65 | 21 | 20 |
