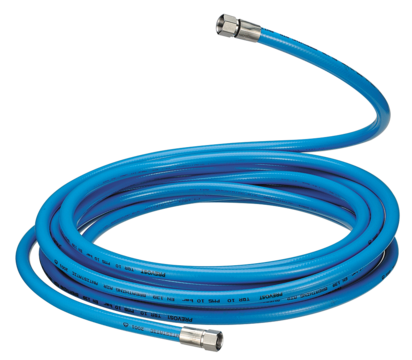

Hoses with swaged ferrules
Net weight (kg)
1,8
Ø ext. (mm)
16.00
Ø int. (mm)
10.00
Material
PVC
Max. output pressure
10.00 bar
Female thread
G3/8
Temperature
-20.00°C to 60.00°C
Description
Reference
Net weight (kg)
Ø ext. (mm)
Ø int. (mm)
Material
Max. output pressure
Female thread
Temperature
BAH 1010
BAH 1015
BAH 1020
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
BAH 1010
BAH 1015
BAH 1020
Description
| Reference | Net weight (kg) | Ø ext. (mm) | Ø int. (mm) | Material | Max. output pressure | Female thread | Temperature | 3D |
|---|---|---|---|---|---|---|---|---|
| BAH 1010 | 1,8 | 16.00 | 10.00 | PVC | 10.00 bar | G3/8 | -20.00°C to 60.00°C | |
| BAH 1015 | 2,22 | 16.00 | 10.00 | PVC | 10.00 bar | G3/8 | -20.00°C to 60.00°C | |
| BAH 1020 | 2,894 | 16.00 | 10.00 | PVC | 10.00 bar | G3/8 | -20.00°C to 60.00°C |
