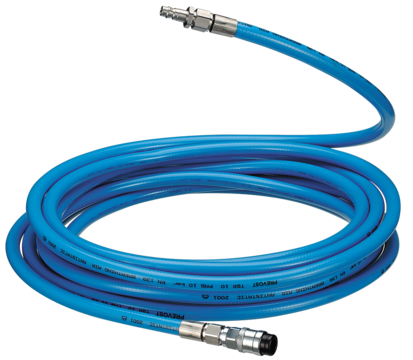

Hoses with couplers and adaptors
Net weight (kg)
0,528
Ø ext. (mm)
16.00
Ø int. (mm)
10.00
Material
PVC
Max. output pressure
10.00 bar
Temperature
-20.00°C to 60.00°C
Description
Reference
Net weight (kg)
Ø ext. (mm)
Ø int. (mm)
Material
Max. output pressure
Temperature
BAH 1002CP
BAH 1010CP
BAH 1015CP
BAH 1020CP
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
BAH 1002CP
BAH 1010CP
BAH 1015CP
BAH 1020CP
Description
| Reference | Net weight (kg) | Ø ext. (mm) | Ø int. (mm) | Material | Max. output pressure | Temperature | 3D |
|---|---|---|---|---|---|---|---|
| BAH 1002CP | 0,528 | 16.00 | 10.00 | PVC | 10.00 bar | -20.00°C to 60.00°C | |
| BAH 1010CP | 1,837 | 16.00 | 10.00 | PVC | 10.00 bar | -20.00°C to 60.00°C | |
| BAH 1015CP | 2,447 | 16.00 | 10.00 | PVC | 10.00 bar | -20.00°C to 60.00°C | |
| BAH 1020CP | 3,18 | 16.00 | 10.00 | PVC | 10.00 bar | -20.00°C to 60.00°C |
