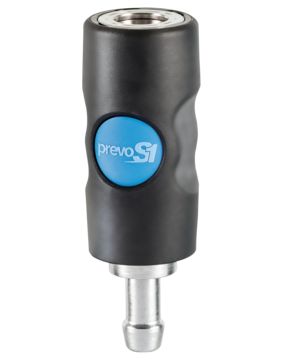

1852_ISI_081800
3D

Hose tail coupler

Disconnection
Button
Material
Composite
Max. output pressure
12 bar
Sécurité
Safety
Temperature
-15°C to 70°C
ID passage
8 mm
Type of filling
Valved

Plus de références

Reference
Net weight (kg)
Flow rate
Profile
For pipe ID
ISI 081808
ISI 081810
ISI 081813
ISI 081816

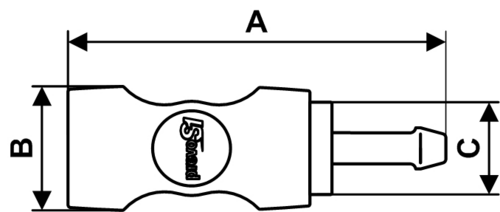

Dimensions

ISI 081800
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
ISI 081808
96.4
33
22.6
ISI 081810
96.4
33
22.6
ISI 081813
101.4
33
22.6
ISI 081816
101.4
33
22.6
Reference Net weight (kg) Flow rate Profile For pipe ID 3D
ISI 081808 0,13 Kg 2028 l/min (P = 6 bar, ΔP = 0.6 bar) ISO 6150B 8 mm 3D
ISI 081810 0.130 Kg 2028 l/min (P = 6 bar, ΔP = 0.6 bar) ISO 6150B 10 mm 3D
ISI 081813 0.136 Kg 2028 l/min (P = 6 bar, ΔP = 0.6 bar) ISO 6150B 13 mm 3D
ISI 081816 0,142 Kg 2028 l/min (P = 6 bar, ΔP = 0.6 bar) ISO 6150B 16 mm 3D

Dimensions

Reference A mm B mm C mm
ISI 081808 96.4 33 22.6
ISI 081810 96.4 33 22.6
ISI 081813 101.4 33 22.6
ISI 081816 101.4 33 22.6
ISI 081800
