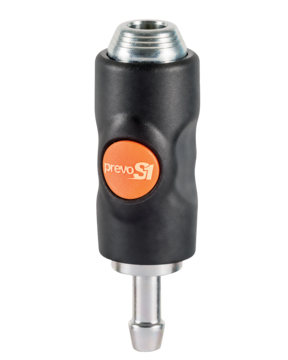

1969_BSI_061800
3D

Hose tail coupler

Material
Composite
Max. output pressure
12 bar
Sécurité
Safety
Temperature
-15°C to 70°C
ID passage
6 mm
Type of filling
Valved

Plus de références

Reference
Net weight (kg)
Flow rate
Profile
Pour tuyaux Ø int.
BSI 061806
BSI 061808
BSI 061810
BSI 061813

Dimensions

BSI 061800
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
BSI 061806
90.6
30
19.4
BSI 061808
90.6
30
19.4
BSI 061810
90.6
30
19.4
BSI 061813
95.6
30
19.4
Reference Net weight (kg) Flow rate Profile Pour tuyaux Ø int. 3D
BSI 061806 0,087 Kg 750 l/min (P = 6 bar, ΔP = 0.6 bar) BRITISH 6 mm mm 3D
BSI 061808 0,102 Kg 750 l/min (P = 6 bar, ΔP = 0.6 bar) BRITISH 8 mm mm 3D
BSI 061810 0,103 Kg 750 l/min (P = 6 bar, ΔP = 0.6 bar) BRITISH 10 mm mm 3D
BSI 061813 0,09 Kg 750 l/min (P = 6 bar, ΔP = 0.6 bar) BRITISH 13 mm mm 3D

Dimensions

Reference A mm B mm C mm
BSI 061806 90.6 30 19.4
BSI 061808 90.6 30 19.4
BSI 061810 90.6 30 19.4
BSI 061813 95.6 30 19.4
BSI 061800
