Hose tail coupler

For hose ID (mm)
6
Profile
British
Technology
"One push" safety system (avoids hose whip)
Operating pressure
2 to 12 bar
Flow rate at 6 bar
750 l/min (ΔP : 0,6 bar)
ID Passage
6 mm
Temperature
-15°C to +70°C
Construction
Composite body
Highlight
Anti-static Non scratch

Description

Reference
For hose ID (mm)
BSI 061806
BSI 061808
BSI 061810
BSI 061813

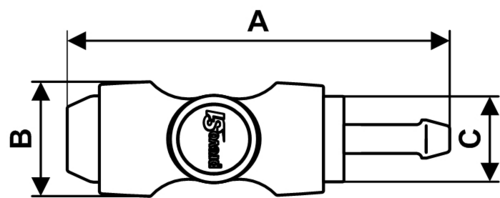

Dimensions

1969_BSI 061800.jpg
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
BSI 061806
90.6
30
19.4
BSI 061808
90.6
30
19.4
BSI 061810
90.6
30
19.4
BSI 061813
95.6
30
19.4

Description

Reference For hose ID (mm) 3D
BSI 061806 6 3D
BSI 061808 8 3D
BSI 061810 10 3D
BSI 061813 13 3D

Dimensions

Reference A mm B mm C mm
BSI 061806 90.6 30 19.4
BSI 061808 90.6 30 19.4
BSI 061810 90.6 30 19.4
BSI 061813 95.6 30 19.4
1969_BSI 061800.jpg
