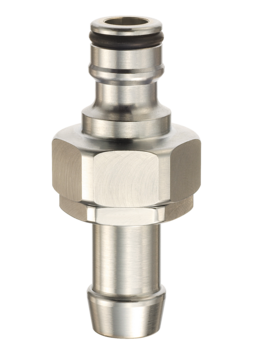

Hose tail connector
Net weight (kg)
0,126
Material
Chromed brass
Max. output pressure
10.00 bar
Security
Without safety
Temperature
-15.00°C to 60.00°C
ID passage
9 mm
Type of filling
Straight-through
For hose ID
13 mm
Description
Reference
Net weight (kg)
Material
Max. output pressure
Security
Temperature
ID passage
Type of filling
For hose ID
ELP 096813
ELP 096815
ELP 096819

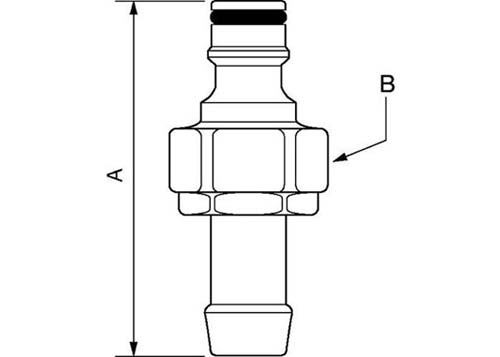

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
ELP 096813
70
30
ELP 096815
70
30
ELP 096819
70
30
Description
Dimensions
| Reference | A mm | B mm |
|---|---|---|
| ELP 096813 | 70 | 30 |
| ELP 096815 | 70 | 30 |
| ELP 096819 | 70 | 30 |
