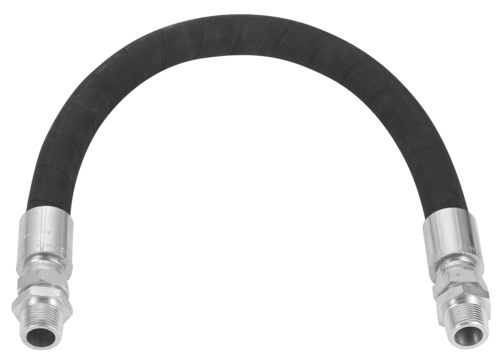

Flexible hoses compensation for network expansion - Tapered male swivel connections
Flexible hoses compensation for network expansion - Tapered male swivel connections
Net weight (kg)
0,7
Male thread
R1/2
Lenght
0.75 m
Max. output pressure
160.00 bar
Temperature
-40.00°C to 70.00°C
Description
Reference
Net weight (kg)
Male thread
Lenght
Max. output pressure
Temperature
LAM 21
LAM 27
LAM 34
LAM 42
LAM 49
LAM 60
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
LAM 21
LAM 27
LAM 34
LAM 42
LAM 49
LAM 60
Description
| Reference | Net weight (kg) | Male thread | Lenght | Max. output pressure | Temperature | 3D |
|---|---|---|---|---|---|---|
| LAM 21 | 0,7 | R1/2 | 0.75 m | 160.00 bar | -40.00°C to 70.00°C | |
| LAM 27 | 1,013 | R3/4 | 0.75 m | 105.00 bar | -40.00°C to 70.00°C | |
| LAM 34 | 1,86 | R1 | 0.75 m | 88.00 bar | -40.00°C to 70.00°C | |
| LAM 42 | 3,4 | R1 1/4 | 1.10 m | 63.00 bar | -40.00°C to 70.00°C | |
| LAM 49 | 4,2 | R1 1/2 | 1.25 m | 50.00 bar | -40.00°C to 70.00°C | |
| LAM 60 | 5,78 | R2 | 1.00 m | 40.00 bar | -40.00°C to 70.00°C |
