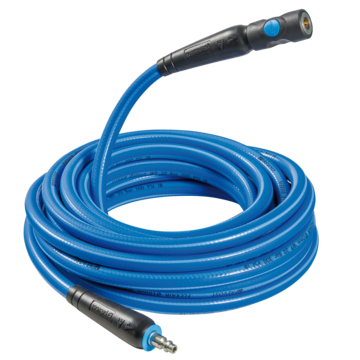

FLEXAIR high flexibility hybrid polymer hose extension with PREVOS1 safety quick couplers
FLEXAIR high flexibility hybrid polymer hose extension with PREVOS1 safety quick couplers
Net weight (kg)
1,45
Ø ext. (mm)
12.50
Ø int. (mm)
8.00
Lenght
22.00 m
Max. output pressure
12.00 bar
Temperature
-15.00°C to 60.00°C
ID passage
6 mm
Profile
ARO 210
Description
Reference
Net weight (kg)
Ø ext. (mm)
Ø int. (mm)
Lenght
Max. output pressure
Temperature
ID passage
Profile
RAL RASB0810
RAL RASB1010
RAL RBSB0810
RAL RBSB1010
RAL RCSB0810
RAL RCSB1010
RAL RESB0810
RAL RESB1010
RAL RISB0810
RAL RISB1010
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
RAL RASB0810
RAL RASB1010
RAL RBSB0810
RAL RBSB1010
RAL RCSB0810
RAL RCSB1010
RAL RESB0810
RAL RESB1010
RAL RISB0810
RAL RISB1010
Description
| Reference | Net weight (kg) | Ø ext. (mm) | Ø int. (mm) | Lenght | Max. output pressure | Temperature | ID passage | Profile | 3D |
|---|---|---|---|---|---|---|---|---|---|
| RAL RASB0810 | 1,45 | 12.50 | 8.00 | 22.00 m | 12.00 bar | -15.00°C to 60.00°C | 6 mm | ARO 210 | |
| RAL RASB1010 | 1,62 | 15.50 | 10.00 | 10.00 m | 12.00 bar | -15.00°C to 60.00°C | 6 mm | ARO 210 | |
| RAL RBSB0810 | 1,46 | 12.50 | 8.00 | 13.00 m | 12.00 bar | -15.00°C to 60.00°C | 6 mm | BRITISH | |
| RAL RBSB1010 | 1,7 | 15.50 | 10.00 | 10.00 m | 12.00 bar | -15.00°C to 60.00°C | 6 mm | BRITISH | |
| RAL RCSB0810 | 1,4 | 12.50 | 8.00 | 10.00 m | 12.00 bar | -15.00°C to 60.00°C | 6 mm | ISO 6150C | |
| RAL RCSB1010 | 1,57 | 15.50 | 10.00 | 10.00 m | 12.00 bar | -15.00°C to 60.00°C | 6 mm | ISO 6150C | |
| RAL RESB0810 | 1,83 | 12.50 | 8.00 | 10.00 m | 12.00 bar | -15.00°C to 60.00°C | 7.4 mm | EUROPEAN | |
| RAL RESB1010 | 1,638 | 15.50 | 10.00 | 10.00 m | 12.00 bar | -15.00°C to 60.00°C | 7.4 mm | EUROPEAN | |
| RAL RISB0810 | 1,45 | 12.50 | 8.00 | 10.00 m | 12.00 bar | -15.00°C to 60.00°C | 6 mm | ISO 6150B | |
| RAL RISB1010 | 1,73 | 15.50 | 10.00 | 10.00 m | 12.00 bar | -15.00°C to 60.00°C | 6 mm | ISO 6150B |
