Filter regulator with manual valve and progressive pressurization valve - 3 units

3649_ATU VMS2585101
3649_ATU VMS2585101
Flow rate
700.00 l/min (P = 6.00 bar ,ΔP = 1.00 bar)
Filtration
25.00 μm
Outlet working pressure
0.50 to 8.50BAR
Max. output pressure
10.00 bar
Female thread
G1/8

Description

Reference
Flow rate
Filtration
Outlet working pressure
Max. output pressure
Female thread
ATU VMS2585100
ATU VMS2585101

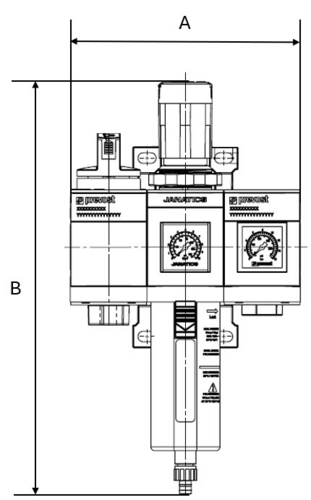

Dimensions

ATU VMS
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
ATU VMS2585100
97
302
ATU VMS2585101
40
68

Description

Reference Flow rate Filtration Outlet working pressure Max. output pressure Female thread 3D
ATU VMS2585100 700.00 l/min (P = 6.00 bar ,ΔP = 1.00 bar) 25.00 μm 0.50 to 8.50BAR 10.00 bar G1/8 3D
ATU VMS2585101 1000.00 l/min (P = 6.00 bar ,ΔP = 1.00 bar) 25.00 μm 0.50 to 8.50BAR 10.00 bar G1/4 3D

Dimensions

Reference A mm B mm
ATU VMS2585100 97 302
ATU VMS2585101 40 68
ATU VMS
