Filter regulator with manual valve - 2 units

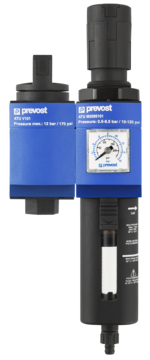

3648_ATU VM2585101
3648_ATU VM2585101
Flow rate
700.00 l/min (P = 6.00 bar ,ΔP = 1.00 bar)
Filtration
25.00 μm
Outlet working pressure
0.50 to 8.50BAR
Max. output pressure
10.00 bar
Female thread
G1/8

Description

Reference
Flow rate
Filtration
Outlet working pressure
Max. output pressure
Female thread
Net weight (kg)
ATU VM2585100
ATU VM2585101
ATU VM2585102
ATU VM2585103

Dimensions

Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
ATU VM2585100
ATU VM2585101
ATU VM2585102
ATU VM2585103

Description

Reference Flow rate Filtration Outlet working pressure Max. output pressure Female thread Net weight (kg) 3D
ATU VM2585100 700.00 l/min (P = 6.00 bar ,ΔP = 1.00 bar) 25.00 μm 0.50 to 8.50BAR 10.00 bar G1/8 3D
ATU VM2585101 1000.00 l/min (P = 6.00 bar ,ΔP = 1.00 bar) 25.00 μm 0.50 to 8.50BAR 10.00 bar G1/4 0,48 3D
ATU VM2585102 3000.00 l/min (P = 6.00 bar ,ΔP = 1.00 bar) 25.00 μm 0.50 to 8.50BAR 10.00 bar G3/8 3D
ATU VM2585103 4500.00 l/min (P = 6.00 bar ,ΔP = 1.00 bar) 25.00 μm 0.50 to 8.50BAR 10.00 bar G1/2 3D
