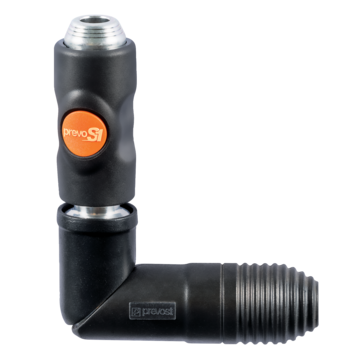

Female threaded swivel coupler
Flow rate
750 l/min (P = 6 bar, ΔP = 0.6 bar)
Material
Composite
Max. output pressure
12 bar
Sécurité
Safety
Temperature
-15°C to 70°C
ID passage
6 mm
Type of filling
Valved
Plus de références
Reference
Net weight (kg)
Female thread
Profile
BSI 061102SW
Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
BSI 061102SW
180
30
132.9
