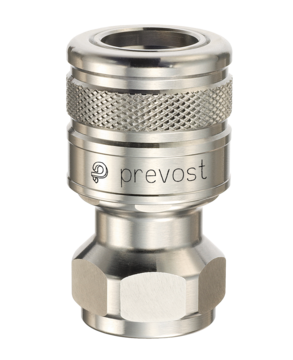

Female thread valved coupler
Net weight (kg)
0,236
Flow rate
24.00 l/min ,ΔP = 0.30 bar)
Material
Brass
Max. output pressure
10.00 bar
Security
Without safety
Female thread
G1/2
Temperature
-15.00°C to 60.00°C
ID passage
9 mm
Type of filling
Valved
Description
Reference
Net weight (kg)
Flow rate
Material
Max. output pressure
Security
Female thread
Temperature
ID passage
Type of filling
ELS 091103
ELS 091104
ELS 091105

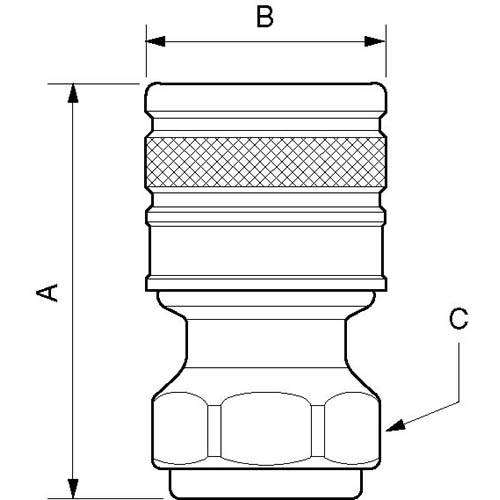

Dimensions
Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
ELS 091103
61
35
30
ELS 091104
61
35
30
ELS 091105
62.5
35
38
Description
Dimensions
| Reference | A mm | B mm | C mm |
|---|---|---|---|
| ELS 091103 | 61 | 35 | 30 |
| ELS 091104 | 61 | 35 | 30 |
| ELS 091105 | 62.5 | 35 | 38 |
